Key Considerations When Selecting Machine Vision Cameras for Industrial Use
Understanding Machine Vision Cameras
Machine vision cameras are specialized devices designed for industrial automation, aiding in automated inspection, identification, and measurement. These cameras are crucial in manufacturing and quality control settings because they can capture detailed images, allowing for the swift analysis of products as they move through production lines. As reported by the International Federation of Robotics, the integration of machine vision technology in industrial robots enhances precision on the factory floor, underscoring the crucial role of this technology in modern manufacturing.
The two primary categories of machine vision cameras—area scan and line scan—differ mainly in their image capture methods. Area scan cameras capture 2D images with a single shot, making them ideal for applications requiring full scene capture like object recognition and positioning inspection. In contrast, line scan cameras capture images one line at a time, which is beneficial for continuous processes such as web inspections or monitoring conveyor belt systems. These capabilities make machine vision cameras a vital tool for industries aiming to improve efficiency through automation and precise quality control.
Key Considerations When Selecting Machine Vision Cameras for Industrial Use
Choosing the right machine vision camera for industrial applications requires understanding specific needs and conditions. First and foremost, defining application requirements is crucial. This involves analyzing the inspection tasks, the types of objects being examined, and considering the operational environments. For instance, will the cameras be exposed to harsh conditions requiring protective enclosures, or will they be used in clean room environments? A well-defined understanding assists in narrowing down camera specifications like image resolution and sensor type.
The choice of sensor is another critical factor, as it directly impacts image quality and measurement accuracy across different lighting situations. Various aspects such as sensitivity to light, dynamic range, and pixel architecture must be evaluated. High sensitivity sensors are pivotal for low-light conditions, while a wider dynamic range can accommodate scenes with varying light intensity. Selecting the appropriate sensor ensures that the camera functions effectively, regardless of whether it operates under intense warehouse lighting or requires precision with subtle contrasts in laboratory settings.
Image resolution defines the detail captured by the camera, and understanding these needs is essential. High-resolution cameras are necessary for tasks requiring fine details, such as detecting minute defects in microelectronic components. In contrast, lower resolutions are sufficient for broader inspections like verifying the presence of an item. Determining the minimum feature size that needs detection can guide the number of pixels required, directly impacting the inspection's accuracy and detail quality.
The frame rate of a camera is vital, especially in fast-paced production environments. High frame rates prevent motion blur by capturing fast-moving objects accurately, which is essential for applications like conveyor belt inspections in automotive manufacturing. Conversely, stationary object inspections might allow for lower frame rates without compromising image quality.
Finally, selecting an appropriate communication interface is crucial for integrating the camera into existing systems. Interfaces such as USB, GigE, or Camera Link affect data transfer speeds and compatibility with other equipment. These choices impact not only how quickly the image data can be processed but also the overall system's scalability. For example, GigE is favored for networks where multiple cameras operate simultaneously due to its high data throughput and long cable lengths, aiding in seamless integration into existing manufacturing processes.
Lighting Solutions for Machine Vision Applications
Selecting appropriate lighting solutions is essential in machine vision applications. Various types of lighting are used, each serving specific purposes.
Ring Light: This type of lighting provides even illumination around the camera lens and is ideal for eliminating shadows. It's particularly effective for inspecting small or deep parts where shadows might otherwise obscure crucial details.
Bar Light: Bar lights are versatile and often used to illuminate larger areas. They can be positioned at various angles, making them adaptable for different environmental settings and object sizes. This flexibility helps achieve the optimal lighting necessary for accurate image capture.
Dome Light: Dome lights create a diffuse light that significantly reduces reflections and hotspots. This lighting is advantageous for providing consistent illumination of three-dimensional objects, ensuring that all surfaces are uniformly lit without glare or shadow interference.
Choosing the right machine vision lighting involves considering several factors. Key considerations include the specific application requirements, the type of objects under inspection, and the environment where the lighting will be installed. The correct choice of lighting not only enhances image quality but also improves inspection accuracy, leading to more reliable results in industrial automation processes. Additionally, factors like color temperature and light intensity need careful evaluation to match the lighting solution with the machine vision system's needs, thereby optimizing performance and efficiency.
Product Recommendations for Machine Vision Cameras

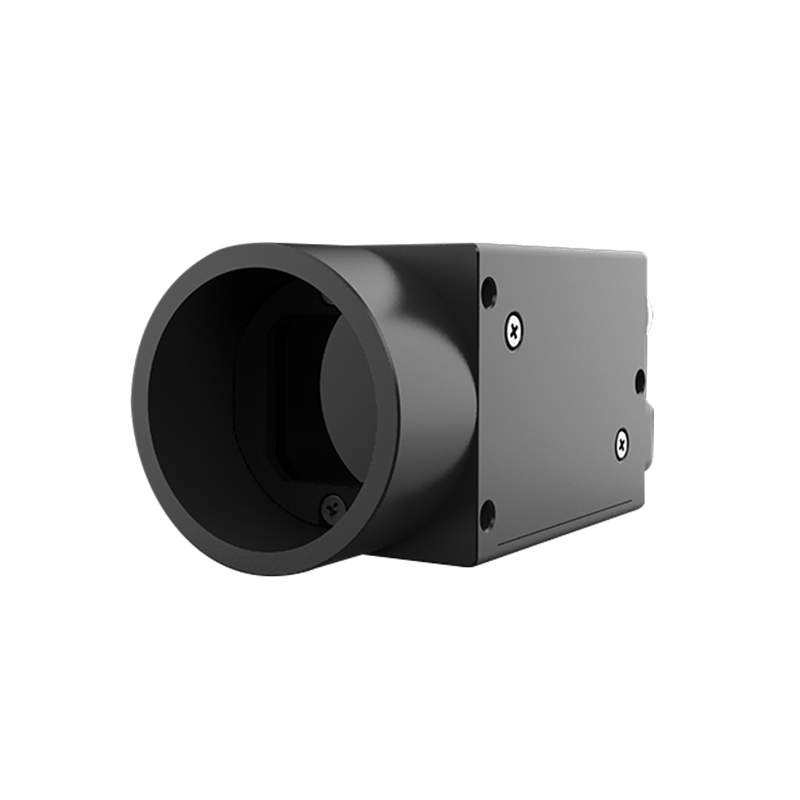

Choosing the right machine vision camera is crucial for optimizing inspection systems. The MV-31GM-GE Area Scan Camera stands out due to its high sensitivity and resolution, making it suitable for detailed inspections in various industrial applications. Its design ensures precise imaging of minute details, enhancing the accuracy of quality control processes.
.png)

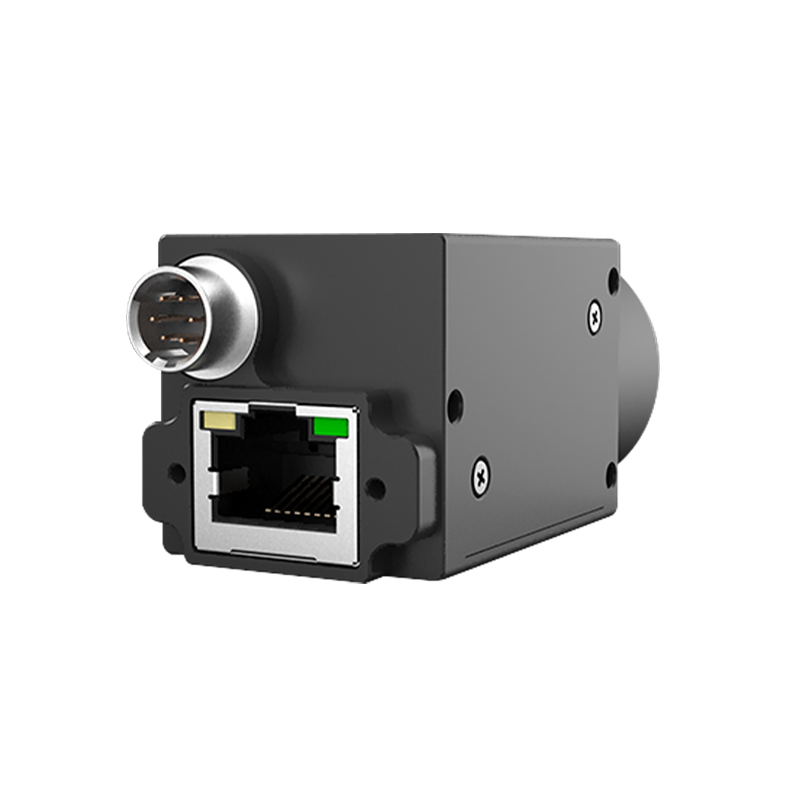

The MV-2100RC-GE/M Area Scan Camera offers a versatile solution for diverse industrial applications. It features robust performance, making it suitable for demanding environments where reliability is essential. Its adaptability in different settings allows for seamless integration into various systems.
.png)
For general-purpose machine vision tasks, the MV-200GC-GE/M Area Scan Camera provides a balanced offering of features. It delivers good value, balancing performance and functionality, making it a practical choice for inspection tasks that require efficiency without sacrificing quality.
Evaluating and Integrating Machine Vision Solutions
Evaluating and integrating machine vision solutions requires meticulous testing and strategic planning. Initially, performance tests are crucial to ensure that the camera aligns with the application's specifications. Running these tests in actual production conditions can be invaluable in identifying potential issues before full-scale implementation. This approach allows businesses to tweak and refine their systems to meet their unique production needs more effectively.
Integration with existing systems is a significant step that involves a comprehensive compatibility assessment with current software and hardware. Engaging with technical teams during the design phase is instrumental in ensuring seamless integration without disrupting existing workflows. Such engagement helps in identifying potential bottlenecks and facilitating a smoother transition to the new system, thereby optimizing the benefits of machine vision technology in the production environment. This process ensures that businesses can harness the full potential of innovations like ring light, bar light, and high-speed cameras within their operational framework.
