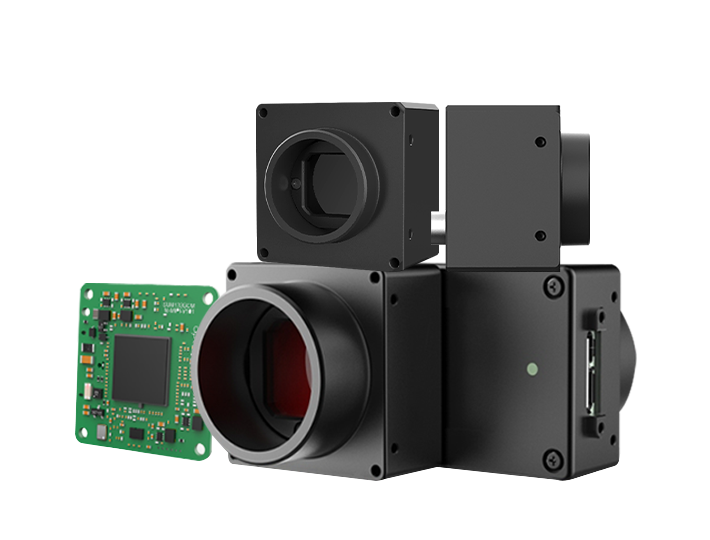

BL-AU133GC/M-C Board Level Camera 1/2.7" 1.3MP 221.25FPS
|
This series of board level cameras includes color and mono. Compact body, ultra-thin size, flexible installation. ● Comes with programmable IO. ● Supports 16bit mono and 48bit color lossless format output. ● Multiple options are available:single board,C interface,M12 interface. ● Supports PC Linux system and ARM Linux system. ● Compatible with Vision protocol and other brand vision software. |
| Model | Effective pixels | Sensor | Shutter | Max resolution | Pixel size | Frame rate(FPS) | Target size | Maximum gain | Exposure time range（ms) |
Color |
| BL-1201RC/M-GE | 12MP | CMOS | Rolling | 4000×3000 | 1.85um | 9.75 | 1/1.7″ | 22 | Color:0.031~4063.2 Mono:0.001~1310.7 |
Color/Mono |
| BL-1202RC/M-GE | 12MP | CMOS | Rolling | 4000X3000 | 1.6um | 9.75 | 1/2" | 64 | 0.034~9792 | Color/Mono |
| BL-2000RC/M-GE-CS | 20MP | CMOS | Rolling, Global start |
5488X3672 | 2.4um | 6 | 1" | 22 | 0.044~11534.3 | Color |
| BL-500RC/M-GE-CS | 5MP | CMOS | Rolling | 2608x1958 | 2.0um | 24 | 1/2.7" | 15.75 | 0.021~1376.2 | Color/Mono |
| BL-134GC/M-GE-CS | 1.3MP | CMOS | Global | 1280x1024 | 4.8um | 91.5 | 1/2" | 16.5 | 0.008~1048.6 | Color |
| BL-AU133GC/M-C | 1.3MP | CMOS | Global | 1280x1024 | 4um BSI | 221.25 | 1/2.7" | 6 | 0.0043~35.2 | Color |
| BL-AU133GC/M-B | 1.3MP | CMOS | Global | 1280x1024 | 4um BSI | 221.25 | 1/2.7" | 6 | 0.0043~35.2 | Color |
| BL-AU133GC/M-M | 1.3MP | CMOS | Global | 1280x1024 | 4um BSI | 221.25 | 1/2.7" | 6 | 0.0043~35.2 | Color |
| BL-AU33GC/M-C | 0.3MP | CMOS | Global | 640×480 | 4um | 725 | 1/5.6" | 8 | 0.0027~22.3 | Mono |
| BL-AU33GC/M-B | 0.3MP | CMOS | Global | 640×480 | 4um | 725 | 1/5.6" | 8 | 0.0027~22.3 | Mono |
| BL-AU33GC/M-M | 0.3MP | CMOS | Global | 640×480 | 4um | 725 | 1/5.6" | 8 | 0.0027~22.3 | Mono |
| BL-AU134GC/M-C | 1.3MP | CMOS | Global | 1280×1024 | 4.8um | 202.25 | 1/2" | 16.5 | 0.0045~584.4 | Color/Mono |
| BL-AU134GC/M-B | 1.3MP | CMOS | Global | 1280×1024 | 4.8um | 202.25 | 1/2" | 16.5 | 0.0045~584.4 | Color/Mono |
| BL-AU134GC/M-M | 1.3MP | CMOS | Global | 1280×1024 | 4.8um | 202.25 | 1/2" | 16.5 | 0.0045~584.4 | Color/Mono |
| Please contact us learn more models ! | ||||||||||
| Model | BL-AU133GC/M |
| Sensor | 1/2.7"CMOS |
| Shutter | Global |
| Color/Mono | Color/Mono |
| Pixel Size | 4umx4um BSI |
| Resolution | 1.3MP |
| Frame rate | [email protected] |
| Output pixel width | 8 bits |
| Sensitivity | 8V/Lux·s |
| GPIO | 2 bidirectional IO, each with input or output functions, can be configured as input/output/trigger/flash in the IO control |
| Maximum gain | 6 |
| Exposure time(ms) | 0.0043~35.2 |
| AD width | 10bit |
| Frame buffer | 128MB |
| Camera custom data | 2KB |
| Video output format | Bayer BG 8bit / Mono 8bit |
| Trigger mode | Continuous/software triggered/hardware triggered |
| SNR | 40dB |
| Lens mount | C |
| Data interface | USB3.0、Micro B |
| Power supply | 5V |
| Power | <2W |
| Dimensions | 35x36.8x27.9mm (excluding lens base and rear shell interface) |
| Weight | ＜75g |
| Temperature | Working temperature:0~50° Storage temperature:-30~60° |
| Operating system | WINXP, WIN7/8/10 32-bit & 64-bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
| Drivers | Directshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component |
| Programming language package | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Programming language package | Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more |
Aerial imagery
The compact design of board-level cameras helps reduce the load on imaging systems such as Uavs. Slower power consumption improves overall flight time. So the system has more time to capture image assets.
Life science research
The board level camera is compact and has clear imaging. Easy integration into medical devices. Make up for the lack of flexibility of desktop equipment. And effectively improve the accuracy of the experiment, to provide a solid guarantee for life science research.

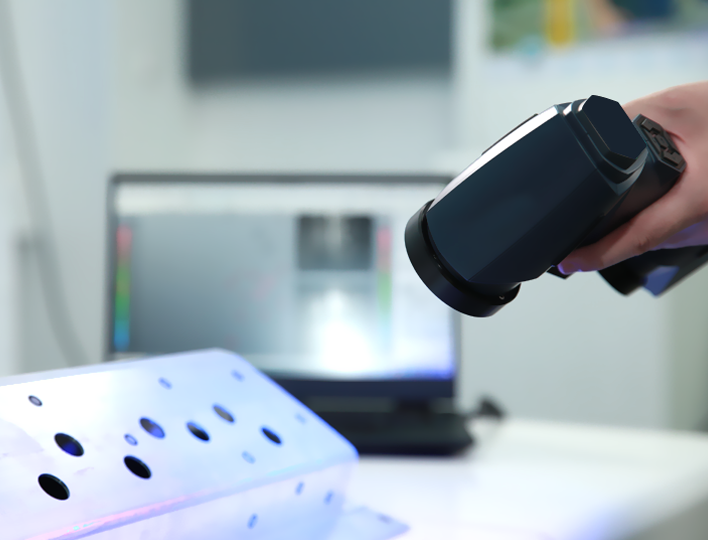

Handheld device applications
Handheld devices are required to be small and easy to move. In the case of fixed lens volume, the smaller the camera, the more convenient the device. And the flexibility of the board level camera ensures that the vision system can adopt a more suitable lens.

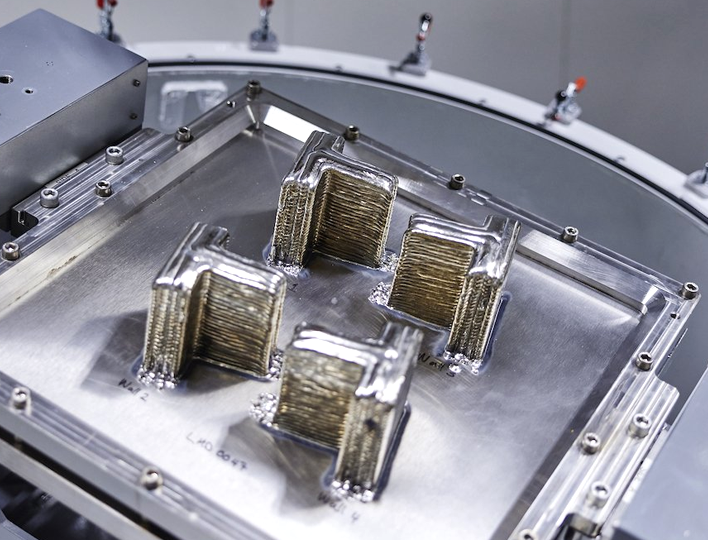

Production and manufacturing
Some industries require high precision in product manufacturing and limited production space. The board level camera just meets the installation conditions of the narrow space and provides an effective solution for the vision system.
Q1. Can I have a sample order for area scan camera?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the area scan camera?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for area scan camera?
A: 1. Confirm camera resolution, sensor size, interface;
2. Confirm camera lens resolution, sensor size, focal length, logo, interface;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
