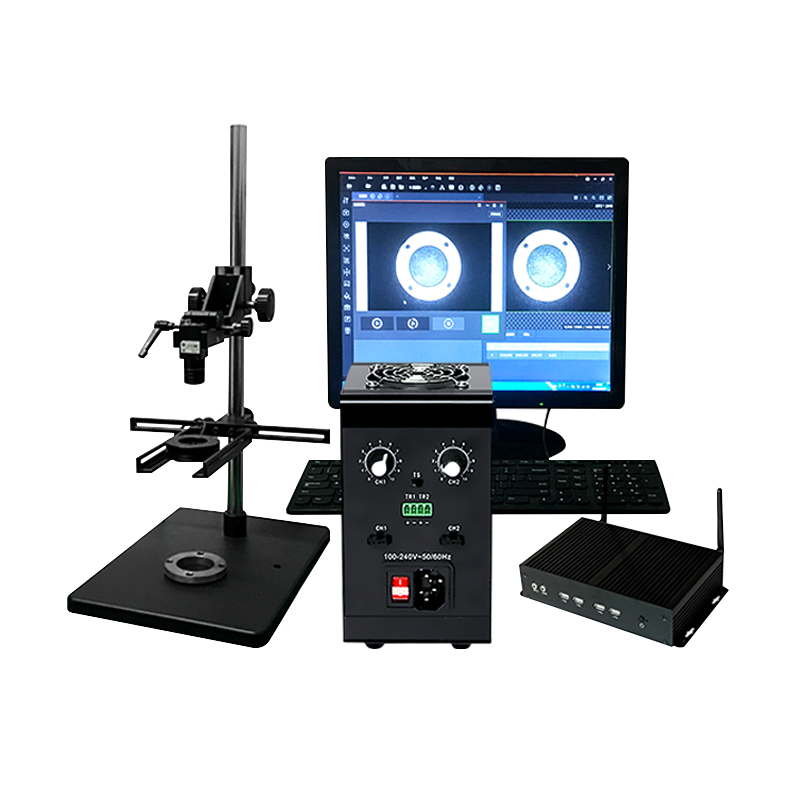

Professional Laboratory Lighting System
|

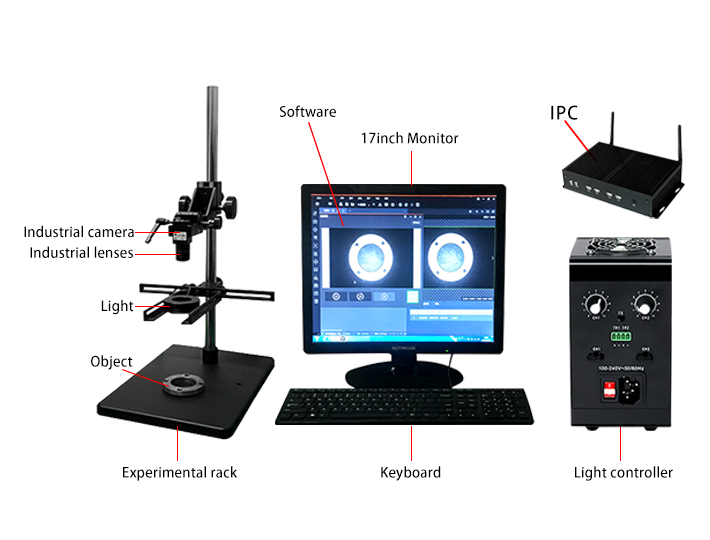

HIFLY laboratory lighting system includes professional industrial camera, industrial lens, machine vision light, machine vision software, light controller, industrial computer, display etc. |
|
● Through the combination of high precision camera, lens and light source, high precision detection of products can be achieved. |
|
● Record inspection data and conduct in-depth analysis to help enterprises understand the problems in the production process. |
|
● Through automatic detection and analysis, the quality consistency of each product is ensured, and the possible errors caused by human operation are reduced. ● Highly adaptable and can be adjusted and configured according to different production requirements. |
| Accessories | Configuration | Model |
| IPC | i54200U/4G Memory /120G Hard disk | KM -I5-4200U |
| Industrial camera | 6MP Rolling | MV -CA060-11GM |
| Industrial lenses | 25MM | KM -FA2501C |
| Light 1 | High power backlight | 2FL100100-W-24 |
| Light 2 | Highly uniform ring light | KM-2RND10040A90-W-24 |
| Light controller | Analog standard controller | ACS2.0-2C003W-5PS |
| Monitor | 17inch Monitor | / |
| Keyboard | General purpose | / |
| Experimental rack | General purpose | / |
| Software | Intelligent vision software | VisionMaster |
| Please contact us learn more models！ | ||

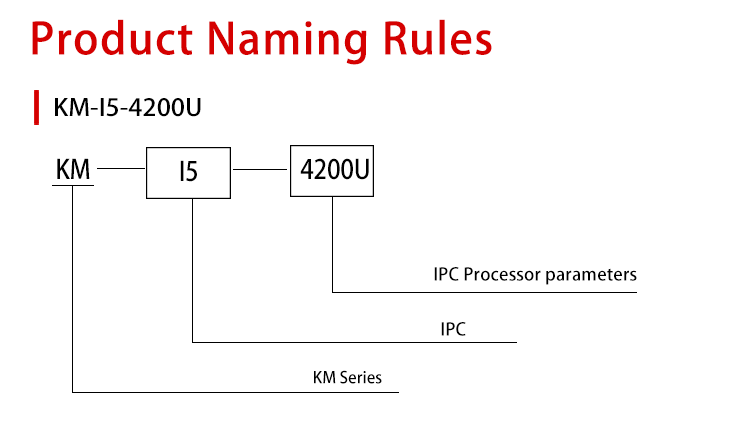

| Model | KM-I5-4200U |
| Type | Laboratory lighting system |
| IPC | 1 |
| Industrial camera | 1 |
| Industrial lenses | 1 |
| Infrared light | 2 |
| Light source controller | 1 |
| Monitor | 1 |
| Keyboard | 1 |
| Experimental rack | 1 |
| Software | 1 |
| Feature | Customization |
| Brand Name | HIFLY |
| Place of Origin | Guangdong, China |
| Customized support | OEM, ODM, Software reengineering |
| Warranty | 1 Year |

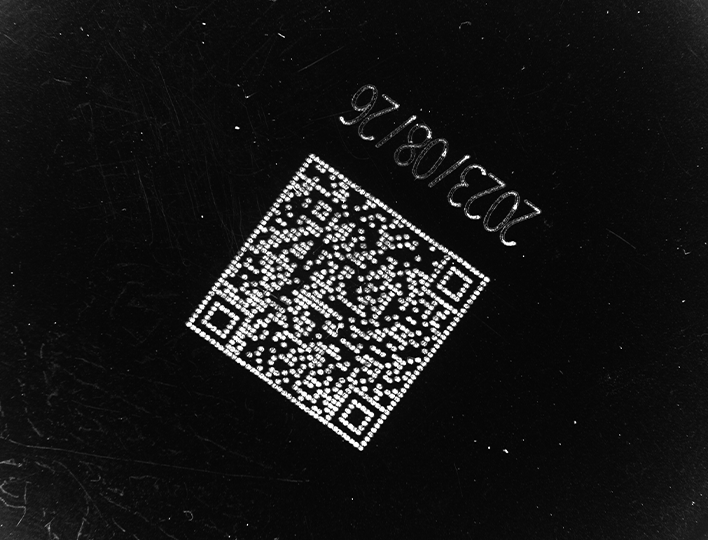

Barcode and QR code recognition extraction
Identify the bar code or two-dimensional code in the selected area of the product packaging, support multi-code reading and proofreading.

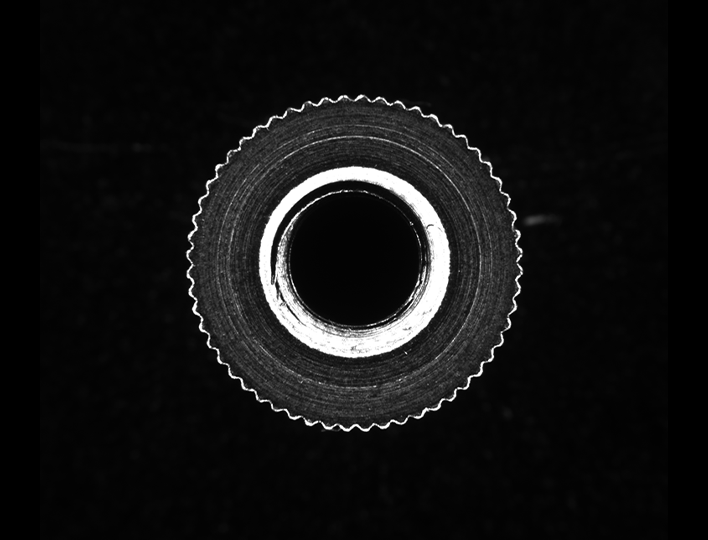

Metal workpiece concentric circle detection
Detect whether the rings of different metal workpieces are concentric and measure the diameter of the rings. When the measurement result exceeds the set value, the alarm will be given to eliminate the unqualified products.

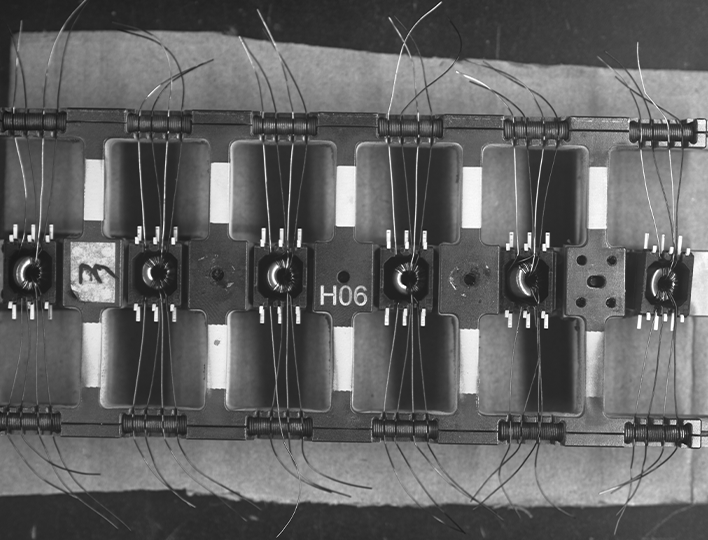

Line order detection
Support the detection of wire and cable, optical fiber, connector head, connector wire, cable, etc. The laboratory lighting system can judge the line sequence, line position dislocation, line missing, etc., Detection accuracy of the wire reaches 0.1mm.

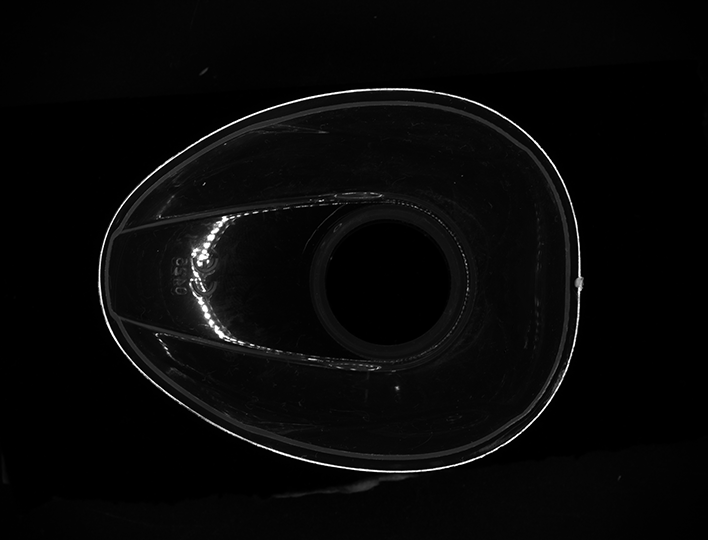

Transparent object impurity detection
Supports the detection of transparent or translucent materials such as glass and plastic. The laboratory lighting system can detect nicks, cracks, dirt and other defects.
Q1. Can I have a sample order for Laboratory Lighting System?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50 set) orders, 1-2 weeks for bulk buying (>50 set).
Q3. What's your MOQ for the Laboratory Lighting System?
A: The MOQ is 1 set.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for Laboratory Lighting System?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
