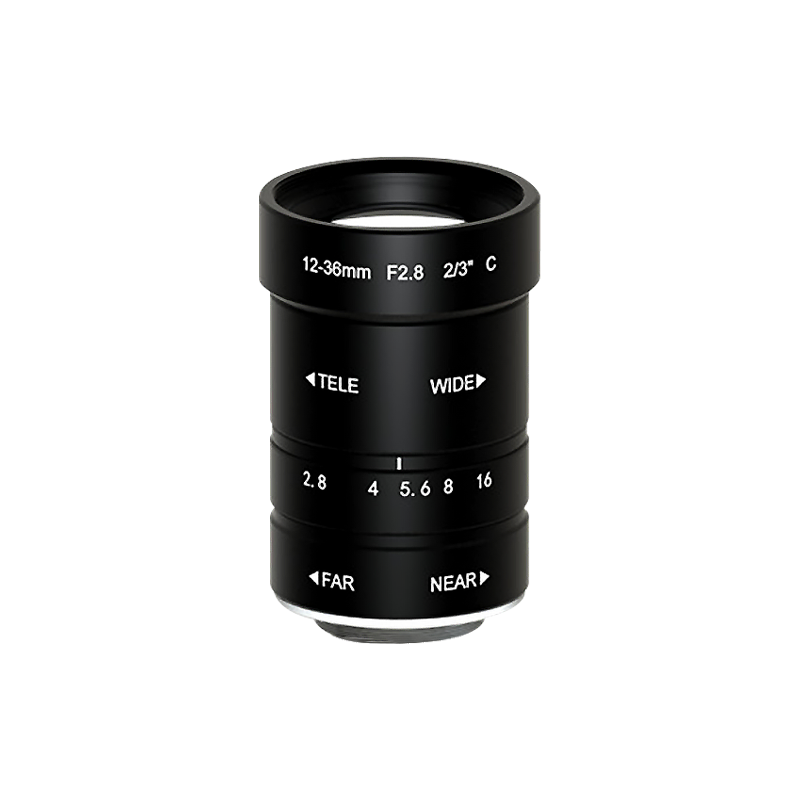

HF-1236C Zoom Lens 5MP 12-36mm
|
HIFLY zoom lens zoom in and out of images by moving a lens inside the lens to change the position of focus, thereby changing the length of focus and the size of the view Angle. |
|
● Image Format: 2/3". |
|
● MTF: 5Mega Pixel. |
|
● Focal Length: 12-36mm. ● High contrast and excellent imaging effects. ● Suitable for various industrial inspection, microscopic imaging and visual positioning and other fields. |

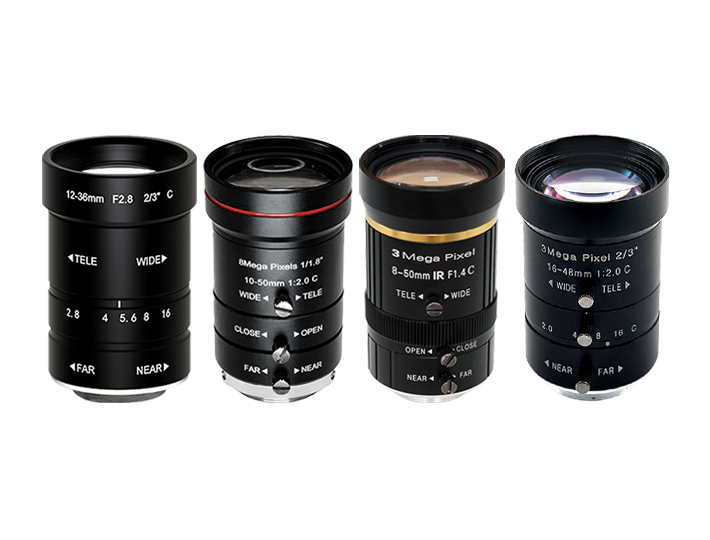

| Model | MTF | Focal Length | Image Format | Max.Aperture Ration | Iris Type | Mount |
| HF-0850C | 3MP | 8-50mm | 1/2.3" | F1.4 | Manual/locked | C |
| HF-1050C8M | 8MP | 10-50mm | 1/1.8" | F2.0-16 | Manual/locked | C |
| HF-1236C | 5MP | 12-36mm | 2/3" | F2.8~F16 | Manual | C |
| HF-1648C | 3MP | 16-48mm | 2/3" | F2.0 | Manual | C |
| Please contact us learn more models！ | ||||||
| Model | HF-1236C | ||
| Focal Length | 12-36mm | ||
| 12mm | 36mm | ||
| Image Format | 2/3" | 2/3" | |
| D/fˊ | F2.8~F16 | F2.8~F16 | |
| Focus Range | 0.1m~Inf. | 0.15m~Inf. | |
| Iris Type | Manual | Manual | |
| Filter Size | M35.5,P=0.5mm | M35.5,P=0.5mm | |
| FOV(D×H×V) | 2/3" | 49.2°x40.3°x30.8° | 17.4°x13.9°x10.5° |
| 1/1.8" | 40.5°x33.0°x24.9° | 14.0°x11.3°x8.4° | |
| 1/2" | 36.9°x29.9°x22.2° | 12.7°x10.2°x7.6° | |
| CRA | ≤7° | ≤3° | |
| TV Distortion | -0.32% | -0.08% | |
| Mount | C-Mount | C-Mount | |
| Operation | Focus | Manual | Manual |
| Zoom | Manual | Manual | |
| Dimensions | M37x63.0mm | M37x63.0mm | |
| Weight | 107g±2g | 107g±2g | |
| Operating Temperature | -20°~60° | -20°~60° | |

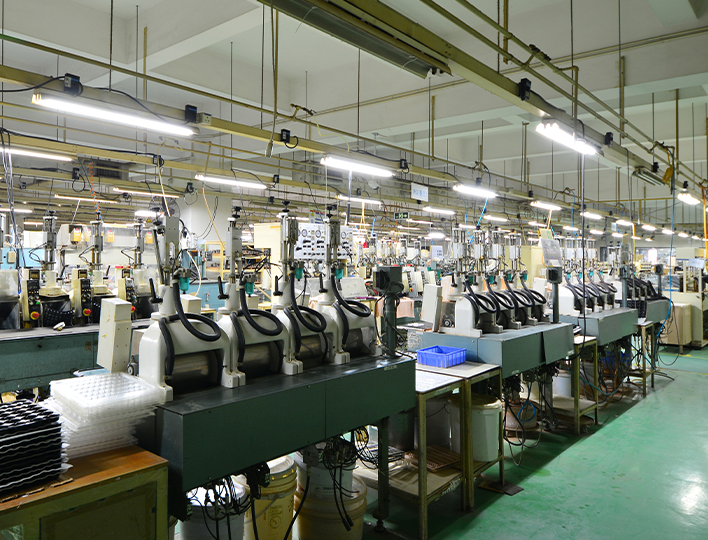

Production line monitoring
Industrial zoom lenses are used to monitor product quality and equipment operating status on production lines. Improve productivity by capturing clear images in real time to detect and fix problems.

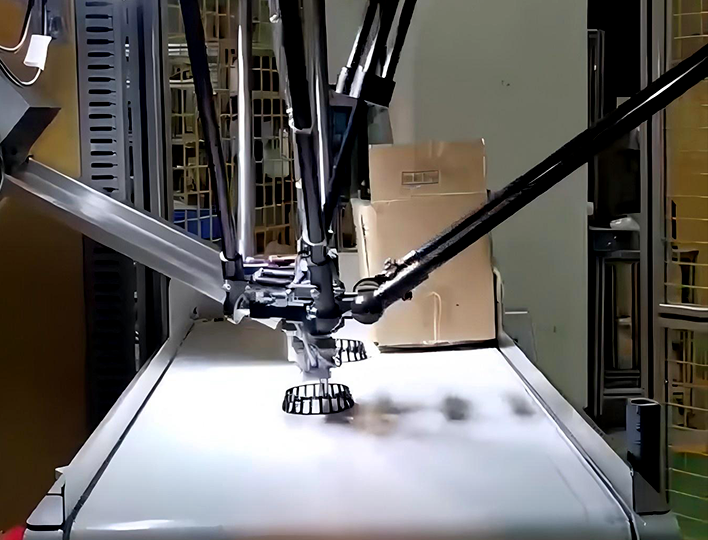

Industrial robot positioning and grasping
In the robot grasping project, the vision system is required to have high positioning accuracy and fast speed. And the high-precision zoom capability of the industrial zoom lens ensures the accuracy and efficiency of the robot operation.

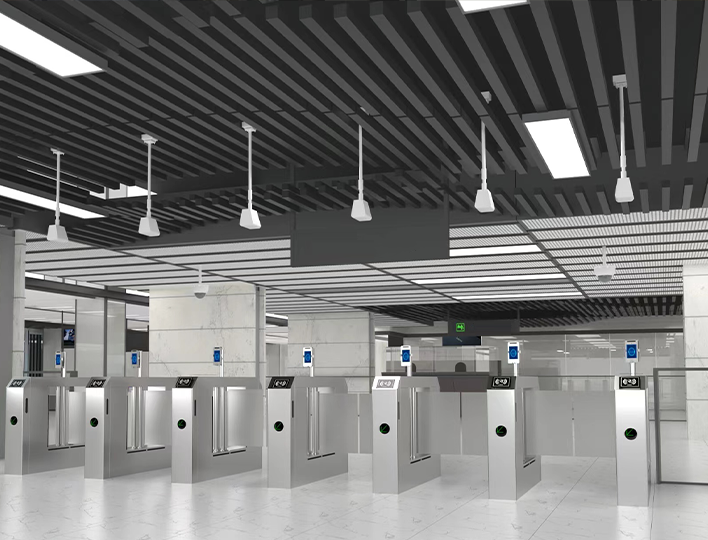

Security monitoring
In the field of security, industrial zoom lens has strong adaptability and can work in harsh environments.Suitable for face recognition, vehicle surveillance, and video surveillance to improve the security performance of public places.

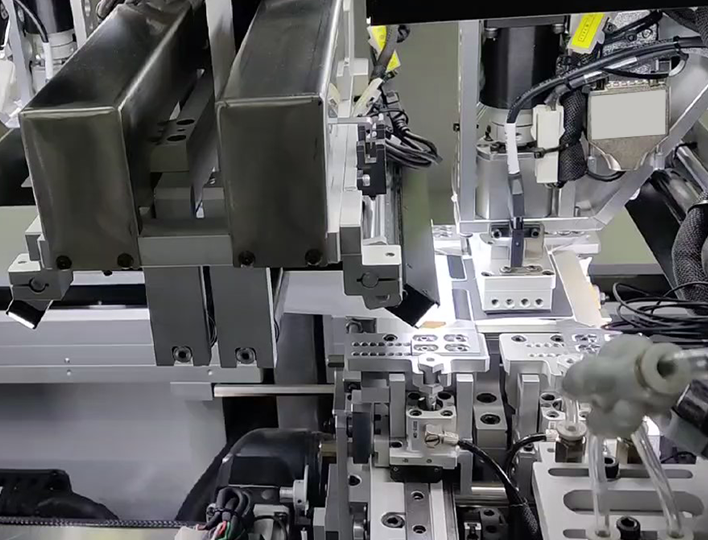

Industrial quality inspection
Industrial zoom lens have low distortion imaging and high contrast features.Suitable for high-precision size measurement and appearance inspection of products, improving the accuracy and reliability of inspection results.
Q1. Can I have a sample order for Zoom Lens?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the Zoom Lens ?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for Zoom Lens ?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
