ACS2.0-2C003W-5PS Standard 2.0 Analog Controller
|
HIFLY 2.0 standard 2-channel analog controller DC output. single channel output power of 3W, the maximum total output power of 6W. |
|
● 2 trigger modes: internal trigger and external trigger. |
|
● Abnormal light source protection. |
|
● Automatic adaptation of light source power. |
|
● Automatic memory function, no data loss during power outage. |
|
● Very stable output and no flicker. |
| Model | Type | Current | Channel | Input Volt | Output Volt | Output Power Per Channel | Output Power Total Power | Trigger | Remarks |
| ACS2.0-2C003W-5PS | Analog Standard | DC | 2 | AC220V | 5V | 3W | 6W | Yes | — |
| ACS2.0-2C030W-24PS | Analog Standard | DC | 2 | AC220V | 24V | 30W | 60W | Yes | — |
| ACS2.0-2C060W-24PS | Analog Standard | DC | 2 | AC220V | 24V | 60W | 120W | Yes | — |
| ACS2.0-4C015W-24PS | Analog Standard | DC | 4 | AC220V | 24V | 15W | 60W | Yes | — |
| ACS2.0-4C030W-24PS | Analog Standard | DC | 4 | AC220V | 24V | 30W | 120W | Yes | — |
| DCS2.0-2C012W-24PS | Digital Standard | DC | 2 | AC220V | 24V | 12W | 24W | Yes | — |
| DCS2.0-2C030W-24PS | Digital Standard | DC | 2 | AC220V | 24V | 30W | 60W | Yes | — |
| DCS2.0-2C060W-24PS | Digital Standard | DC | 2 | AC220V | 24V | 60W | 120W | Yes | — |
| DCS2.0-4C015W-24PS | Digital Standard | DC | 4 | AC220V | 24V | 15W | 60W | Yes | — |
| DCS2.0-4C030W-24PS | Digital Standard | DC | 4 | AC220V | 24V | 30W | 120W | Yes | — |
| DCS2.0-8C015W-24PS | Digital Standard | DC | 8 | AC220V | 24V | 15W | 30W | Yes | — |
| DPSH-2C040W(40W)-48PS | Digital Standard Stroboscopic | PWM | 2 | AC220V | 48V | 40W | 80W | Yes | — |
| DCS3-4C060W(60W)-24PS | Digital Standard | DC | 4 | AC240V | 24V | 60W | 60W | Yes | — |
| DCS3-4C060W(60W)-24PS-E | Digital Standard | DC | 4 | AC240V | 24V | 60W | 60W | Yes | With power supply |
| DCS3-4C080W(120W)-24PS | Digital Standard | DC | 4 | AC240V | 24V | 80W | 120W | Yes | With power supply |
| DCS3-4C080W(120W)-24PS-E | Digital Standard | DC | 4 | AC240V | 24V | 80W | 120W | Yes | With power supply |
| DCS3-4C003W(12W)-5PS | Digital Standard | DC | 4 | AC240V | 5V | 3W | 12W | Yes | With power supply |
| DCS3-4C003W(12W)-5PS-E | Digital Standard | DC | 4 | AC240V | 5V | 3W | 12W | Yes | With power supply |
| DCM2.0-2C003W-5PS | Digital Mini | DC | 2 | DC24V | 5V | 3W | 6W | Yes | — |
| DCM2.0-2C010W-12PS | Digital Mini | DC | 2 | DC24V | 12V | 10W | 20W | Yes | — |
| DCM2.0-2C030W-24PS | Digital Mini | DC | 2 | DC24V | 24V | 30W | 60W | Yes | — |
| DCM2.0-2C060W-24PS | Digital Mini | DC | 2 | DC24V | 24V | 60W | 120W | Yes | — |
| DCM2.0-4C003W-5PS | Digital Mini | DC | 4 | DC24V | 5V | 3W | 12W | Yes | — |
| DCM2.0-4C010W-12PS | Digital Mini | DC | 4 | DC24V | 12V | 10W | 40W | Yes | — |
| DCM2.0-4C015W-24PS | Digital Mini | DC | 4 | DC24V | 24V | 15W | 60W | Yes | — |
| DCM2.0-4C030W-24PS | Digital Mini | DC | 4 | DC24V | 24V | 30W | 120W | Yes | — |
| DCM3-4C060W(60W)-24PS | Digital Mini | DC | 4 | DC24V | 24V | 60W | 60W | Yes | Without power supply |
| DCM3-4C060W(60W)-24PS-E | Digital Mini | DC | 4 | DC24V | 24V | 60W | 60W | Yes | Without power supply |
| DCM3-4C080W(120W)-24PS | Digital Mini | DC | 4 | DC24V | 24V | 80W | 120W | Yes | Without power supply |
| DCM3-4C080W(120W)-24PS-E | Digital Mini | DC | 4 | DC24V | 24V | 80W | 120W | Yes | Without power supply |
| DCM3-4C003W(12W)-5PS | Digital Mini | DC | 4 | DC24V | 5V | 3W | 12W | Yes | Without power supply |
| DCM3-4C003W(12W)-5PS-E | Digital Mini | DC | 4 | DC24V | 5V | 3W | 12W | Yes | Without power supply |
| DPM3-4C072W(72W)-24PS | Digital Mini Stroboscopic | DC | 4 | DC24V | 24V | 72W | 72W | Yes | — |
| DCS-1C300W-24PS | Digital High Power | DC | 1 | DC24V | 24V | 300W | 300W | Yes | — |
| DCS-1C500W-24PS | Digital High Power | DC | 1 | AC220V | 24V | 500W | 500W | Yes | — |
| DCS-2C100W-24PS | Digital High Power | DC | 2 | AC220V | 24V | 100W | 200W | Yes | — |
| DCS-2C150W-24PS | Digital High Power | DC | 2 | AC220V | 24V | 150W | 300W | Yes | — |
| DCS-2C300W-24PS | Digital High Power | DC | 2 | AC220V | 24V | 300W | 600W | Yes | — |
| DCS-4C050W-24PS | Digital High Power | DC | 4 | AC220V | 24V | 50W | 200W | Yes | — |
| DCS-4C080W-24PS | Digital High Power | DC | 4 | AC220V | 24V | 80W | 320W | Yes | — |
| DCS2-2C080W-24PS(SM-2) | Digital High Power | DC | 2 | AC220V | 24V | 80W | 160W | Yes | Network port module (optional) |
| DCS2-2C030W-24PS(WS16-4) | Digital High Power | DC | 2 | AC220V | 24V | 30W | 60W | Yes | Network port module (optional) |
| DCS2-2C050W-24PS(WS16-4) | Digital High Power | DC | 2 | AC220V | 24V | 50W | 100W | Yes | Network port module (optional) |
| DCS2-2C080W-24PS(WS16-4) | Digital High Power | DC | 2 | AC220V | 24V | 80W | 160W | Yes | Network port module (optional) |
| DCS2-2C100W-24PS(WS16-4) | Digital High Power | DC | 2 | AC220V | 24V | 100W | 200W | Yes | Network port module (optional) |
| DCS2-2C150W-24PS(WS16-4) | Digital High Power | DC | 2 | AC220V | 24V | 150W | 300W | Yes | Network port module (optional) |
| DCS2-1C150W-24PS(WS16-4) | Digital High Power | DC | 1 | AC220V | 24V | 150W | 150W | Yes | Network port module (optional) |
| DCS2-1C200W-24PS(WS20-4) | Digital High Power | DC | 1 | AC220V | 24V | 200W | 200W | Yes | Network port module (optional) |
| DCS2-1C300W-24PS(WS20-4) | Digital High Power | DC | 1 | AC220V | 24V | 300W | 300W | Yes | Network port module (optional) |
| DCS2-4C050W-24PS(SM-2) | Digital High Power | DC | 4 | AC220V | 24V | 50W | 200W | Yes | Network port module (optional) |
| DCS2-4C080W-24PS(SM-2) | Digital High Power | DC | 4 | AC220V | 24V | 80W | 320W | Yes | Network port module (optional) |
| DCS2-4C030W-24PS(WS16-4) | Digital High Power | DC | 4 | AC220V | 24V | 30W | 120W | Yes | Network port module (optional) |
| DCS2-4C050W-24PS(WS16-4) | Digital High Power | DC | 4 | AC220V | 24V | 50W | 200W | Yes | Network port module (optional) |
| DCS2-4C080W-24PS(WS16-4) | Digital High Power | DC | 4 | AC220V | 24V | 80W | 320W | Yes | Network port module (optional) |
| DCS2-4C100W-24PS(WS16-4) | Digital High Power | DC | 4 | AC220V | 24V | 100W | 400W | Yes | Network port module (optional) |
| DCS2-4C150W-24PS(WS16-4) | Digital High Power | DC | 4 | AC220V | 24V | 150W | 600W | Yes | Network port module (optional) |
| DCS2-1C400W-24PS(WS20-4) | Digital High Power | DC | 1 | AC220V | 24V | 400W | 400W | Yes | Network port module (optional) |
| DCS2-1C500W-24PS(WS20-4) | Digital High Power | DC | 1 | AC220V | 24V | 500W | 500W | Yes | Network port module (optional) |
| DCS2-2C200W-24PS(WS20-4) | Digital High Power | DC | 2 | AC220V | 24V | 200W | 400W | Yes | Network port module (optional) |
| DCS2-2C300W-24PS(WS20-4) | Digital High Power | DC | 2 | AC220V | 24V | 300W | 600W | Yes | Network port module (optional) |
| DCS2-2C400W-24PS(WS20-4) | Digital High Power | DC | 2 | AC220V | 24V | 400W | 800W | Yes | Network port module (optional) |
| DCS2-2C500W-24PS(WS20-4) | Digital High Power | DC | 2 | AC220V | 24V | 500W | 1000W | Yes | Network port module (optional) |
| DCS2-1C600W-48PS(WS20-6) | Digital High Power | DC | 1 | AC220V | 48V | 600W | 600W | Yes | Network port module (optional) |
| DCS2-1C800W-48PS(WS20-6) | Digital High Power | DC | 1 | AC220V | 48V | 800W | 800W | Yes | Network port module (optional) |
| DCS2-1C1000W-48PS(WS20-6) | Digital High Power | DC | 1 | AC220V | 48V | 1000W | 1000W | Yes | Network port module (optional) |
| DCS2-2C600W-48PS(WS20-6) | Digital High Power | DC | 2 | AC220V | 48V | 600W | 1200W | Yes | Network port module (optional) |
| DY-30-1-24V | Analog Common | DC | 1 | AC240C | 24V | 30W | 30W | — | — |
| Please contact us learn more models！ | |||||||||

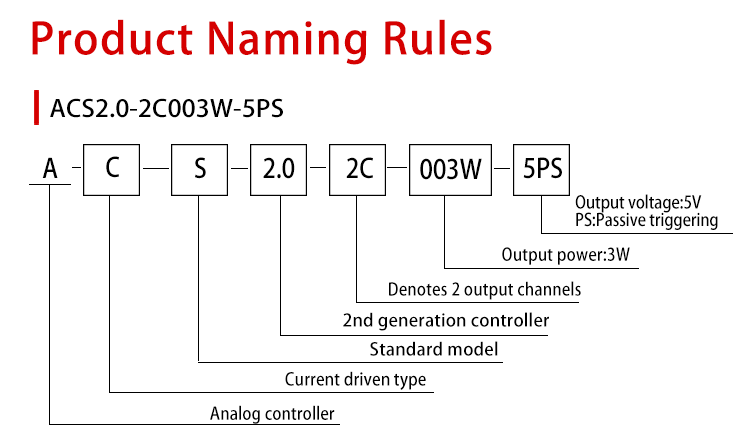

| Model | ACS2.0-2C003W-5PS |
| Type | Analog Standard Controller |
| Current | DC |
| Input Volt | 100-200VAC |
| Output Volt | DC 5V |
| Channel | 2 |
| Single channel output power | 3W |
| Trigger | Passive triggering |
| Operating temperature | －10~50℃ |
| Operating humidity | 20~80% |
| Storage temperature | －20~70℃ |
| Storage humidity | 10~90% |
| Stand-by power consumption | <3W |
| Dimensions | 135×85×158mm |
| Weight | / |
Q1. Can I have a sample order for 2.0 Analog Standard Controller?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the 2.0 Analog Standard Controller?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for 2.0 Analog Standard Controller?
A: 1. Confirm the number and power of light sources;
2. Confirm the size of the installation space reserved for the work site;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
