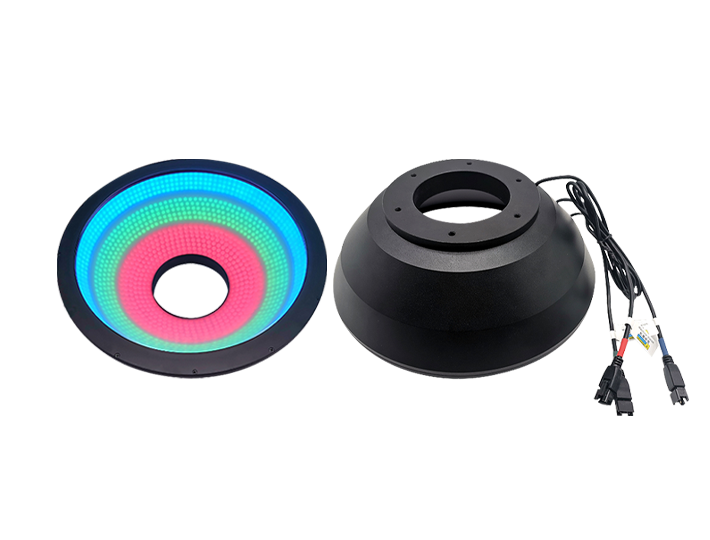

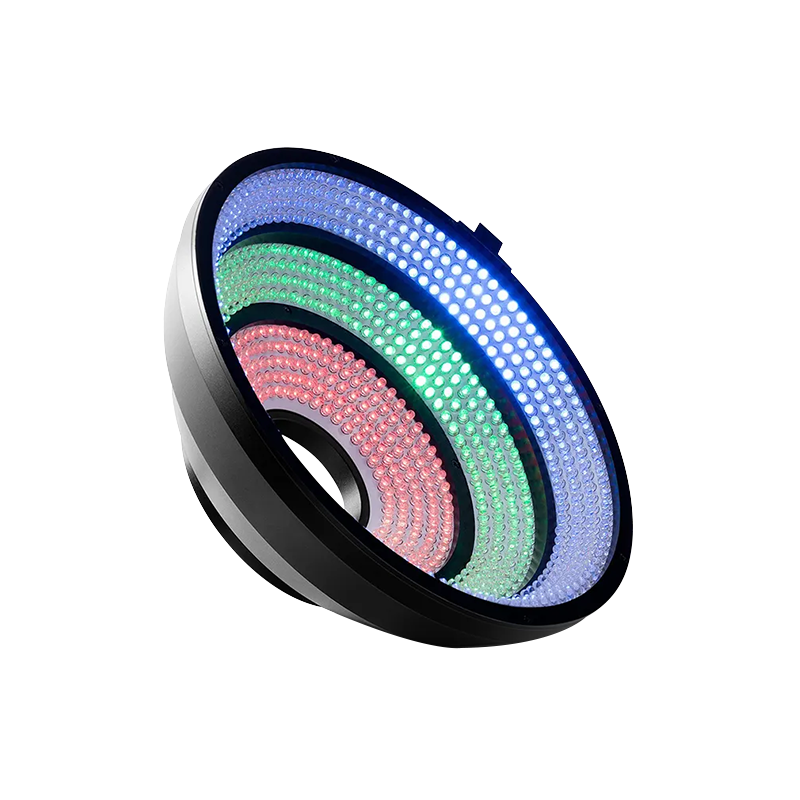

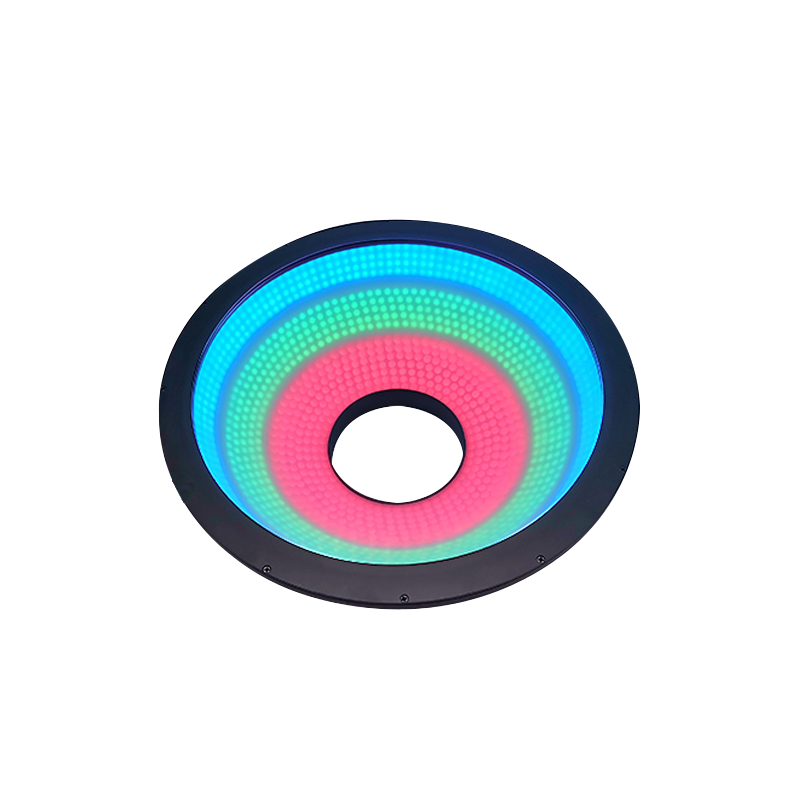

AOI-180 AOI Light DC 24V
|
HIFLY AOI light consists of uniformly distributed LED light-emitting units. Support custom lighting color, shape size and installation mode, etc. |
|
● Maximum luminescence outer diameter: 180mm. |
|
● Brightness level 255, connected to the controller can be adjusted. |
|
● Life span: 50000 hours for red light and 30000 hours for white light. ● Suitable for circuit board solder detection, multi-level object detection, multi-color character detection, etc. |
| Model | luminescence outer diameter(Error ±5mm) | Voltage(V) | Power(W) | LED Type | Weight(g) | |||
| Red | Blue | Green | White | |||||
| AOI-120 | 120mm | 24 | 3 | 8 | 7 | — | SMD | ≈600 |
| AOI-134 | 134mm | 24 | 4 | 9 | 6 | — | SMD | ≈700 |
| AOI-150 | 150mm | 24 | 4 | 12 | 9 | — | SMD | ≈750 |
| AOI-180 | 180mm | 24 | 6 | 16 | 11 | — | SMD | ≈1000 |
| AOI-211 | 211mm | 24 | 8 | 11 | 13 | 11 | SMD | ≈1250 |
| AOI-250 | 250mm | 24 | 10 | 16 | 16 | 16 | SMD | ≈1700 |
| Please contact us learn more models ! | ||||||||
| Model | AOI-180 | ||
| Category | AOI light | ||
| LED Type | SMD | ||
| Emitting Color | Red | Blue | Green |
| Wavelength | 620-635nm | 465-470nm | 525-530nm |
| Color-temperature | — | — | — |
| Power | 6W max. | 16W max. | 11W max. |
| Input Volt | DC 24V | ||
| Cable length | 0.5m | ||
| Terminal Plug | Flat head 3PIN2 pin | ||
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. | ||
| Shell Material | Aluminum Alloy（Oxidative blackened surface） | ||
| Cooling | Natural air cooling | ||
| Dimensions | φ174.7mmxφ68mmxH59.7mm | ||
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
||
| ElectricalIn Sulation Capacity | DC500V Insulation resistance>20 megohms | ||
| Pressure Resistance Requirements | AC1000 V10mA/5S | ||
| Flammability Rating | IEC60707 | ||
| Operating Temperatureand Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) | ||
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
||
| Warranty Period | Under the conditions of use specified by the company,the warranty is two years from the date of shipment,and within two years,if there is a failure problem,it can be repaired or replaced free of charge | ||
| Value Added Services | One year free technical support | ||
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller | ||
| Matingcable (optional) | 1.Light source extension cable 2.Connector adapter cable | ||

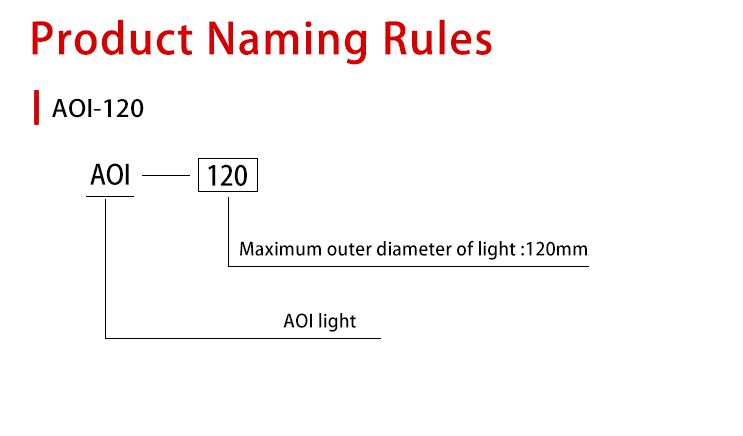

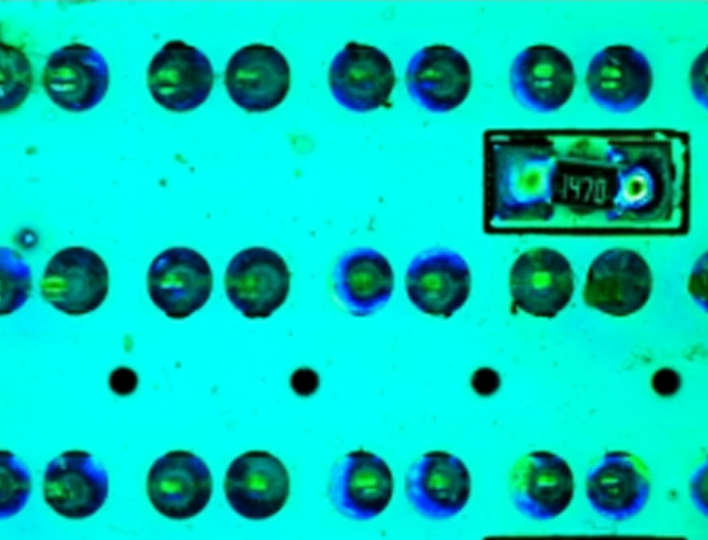

Lamp plate welding spot detection
Ordinary light sources cannot clearly detect the situation of less welding and missing welding. AOI checks the plane or stereo condition of the solder joint of the lamp plate through special optical principles to accurately identify defects and help to improve product quality.
LED lamp bead welding detection
The lamp beads are arranged in order on the lamp plate by soldering. And the small volume of the lamp bead in welding the existence of subtle defects are not easy to be perceived. AOI light is required to cooperate with the detection to ensure the quality of solder welding.

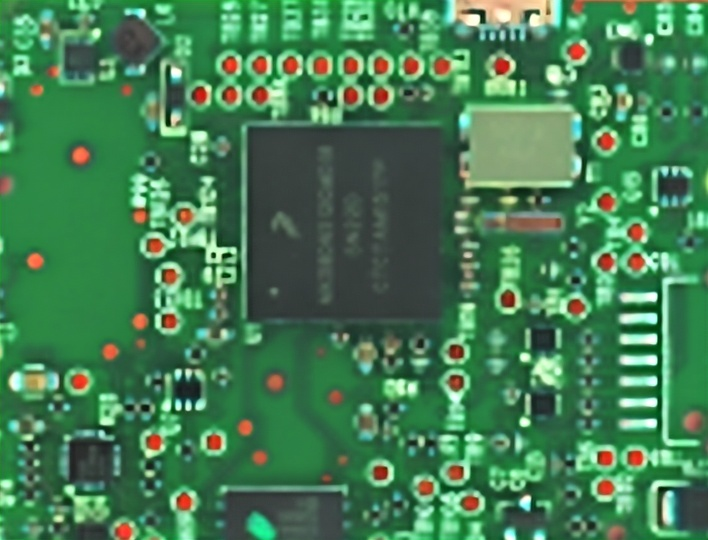

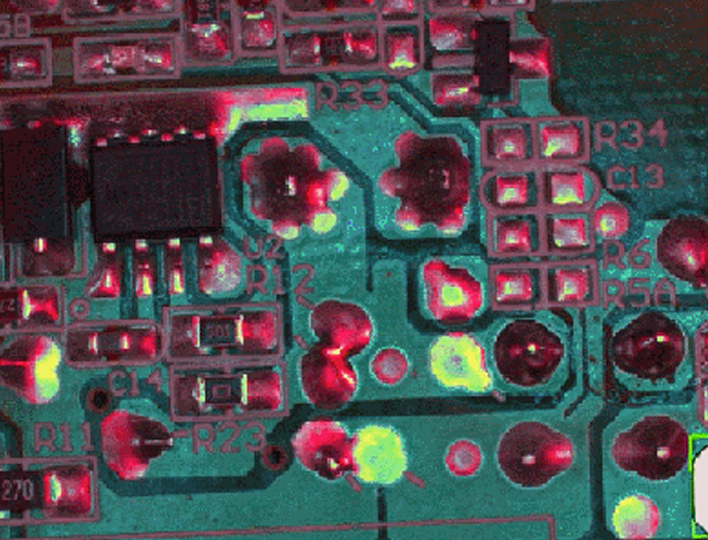

PCB plate welding spot detection
There are many kinds of colors on the PCB plate, and the interference is strong. The solder joint is small and subtle defects are not noticeable. Subtle defects are obvious under AOI illumination, which improves the accuracy of detection.

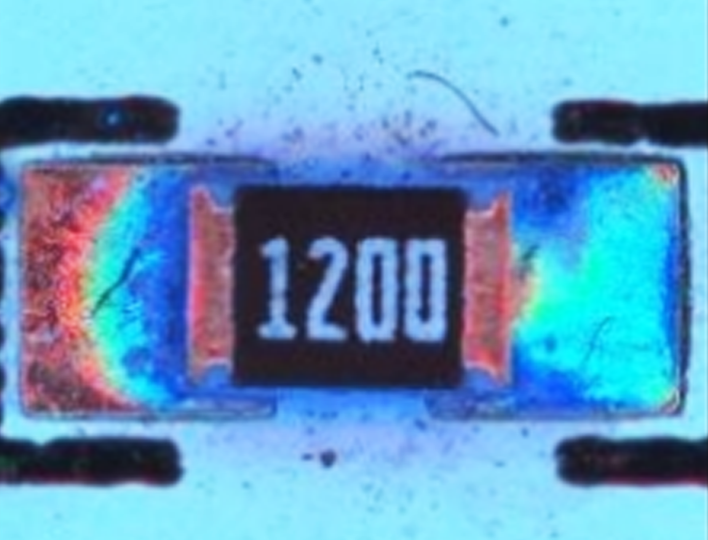

Chip welding defect detection
After the chip is welded, the welding OK and NG should be classified and output. According to the welding area, the condition is divided into half welding or missing welding.
Q1. Can I have a sample order for AOI Light ?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the AOI Light ?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for AOI Light?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
