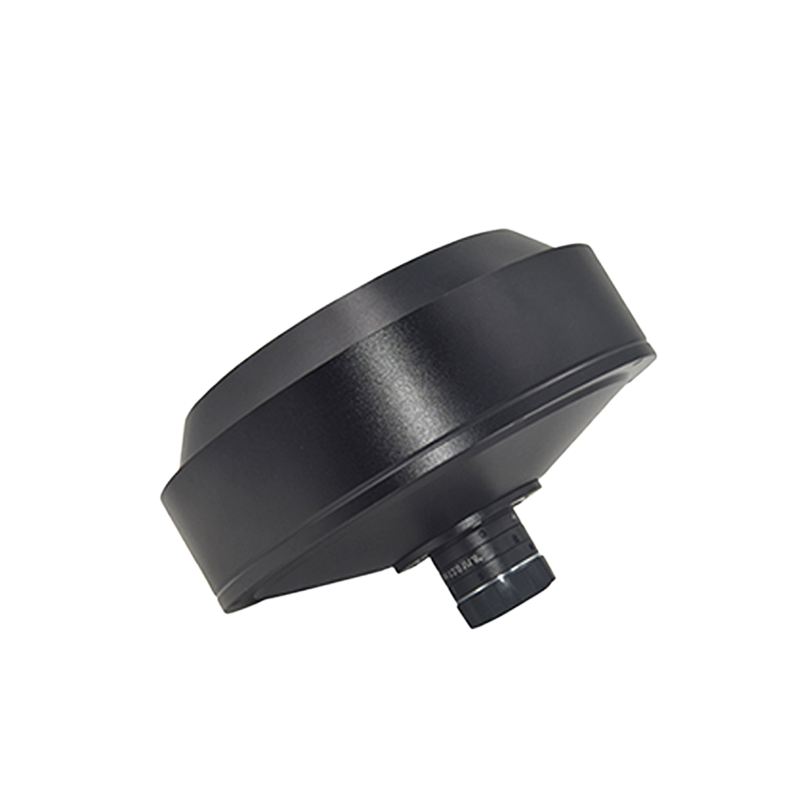

HF-360EXT02 360 Degree Viewing Lens 19-46.2mm
|

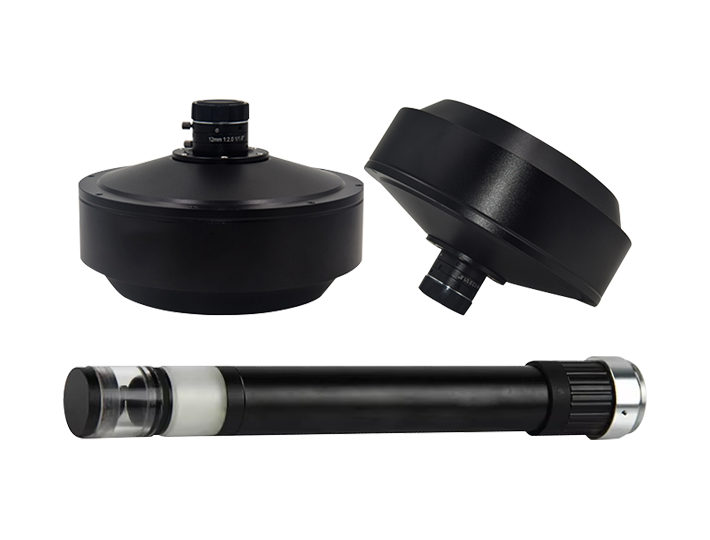

HIFLY 360 degree viewing lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time. |
|
● Sensor Size: 1/3". |
|
● Working Distance: 19-46.2mm. |
|
● F/NO: F6-16, C-Mount. ● High contrast and excellent imaging effects. ● Suitable suitable for appearance detection, inner wall detection, cylinder and complex structure detection, etc. |

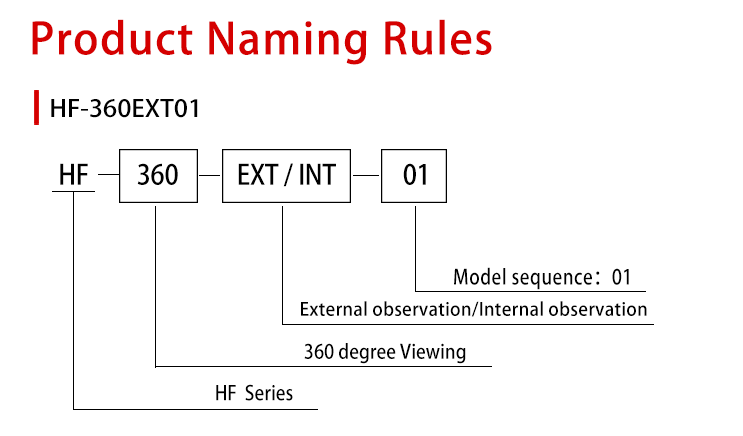

| Model | Sensor Size | F/NO. | Image Size(mm) | Working Distance(mm) | Target Dia(mm) | Inspection Height(mm) | Mount |
| HF-360INT01 | 1/3" | F14 | Ф3.6 | 12.5-50 | — | — | C |
| HF-360EXT01 | 1/3" | F6.0-16 | Ф3.6 | 19-46.2 | 7.5-25 | 4.6-19.54 | C |
| HF-360EXT02 | 1/1.8" | F8.0-16 | Ф5.32 | 9-45.4 | 7.5-30 | 5.3-25 | C |
| HF-360EXT03 | 2/3" | F8.0-16 | Ф6.6 | 14-48.2 | 7.5-30 | 4-23.4 | C |
| HF-360EXT04 | 1/1.8" | F8.0-16 | Ф5.32 | 9-50 | 4.5-30 | 2.7-25 | C |
| HF-360EXT05 | 1/3" | F8.0-16 | Ф3.6 | 9-48 | 4.5-30 | 3.1-25.6 | C |
| Please contact us learn more models！ | |||||||
| Model | HF-360EXT01 |
| Type | 360 degree Viewing lens |
| Sensor Size | 1/3" |
| Image Size | Ф3.6mm |
| WD | 19-46.2mm |
| F/NO. | F6-16 |
| Mount | C-Mount |
| Main Material | Aluminum Alloy + optical Glass |
| Color | Black |
| Weight（g) | — |
| Warranty | 2 years |
| Custom Design | Supported |

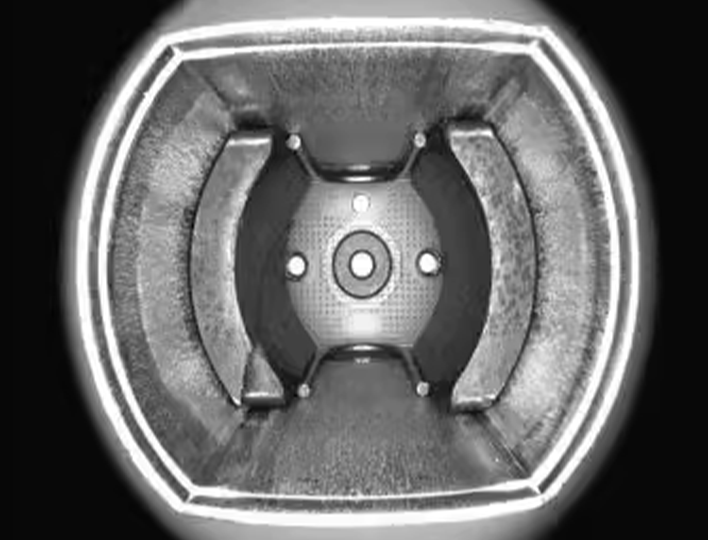

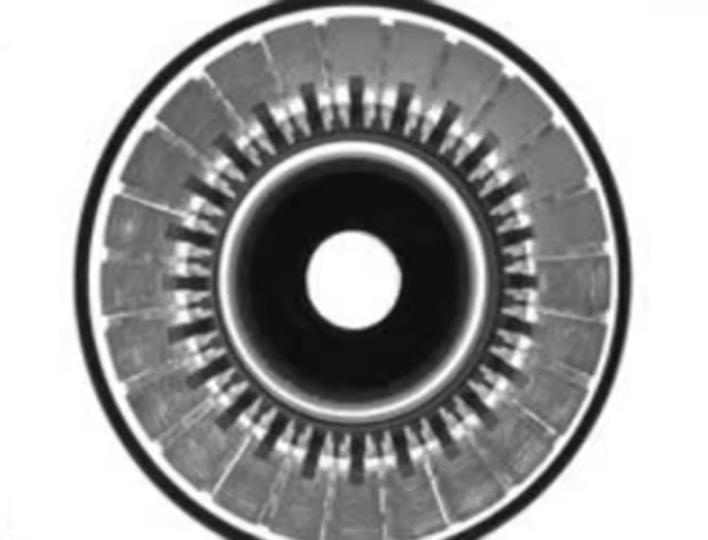

Motor inner wall detection
The inner wall of the motor has complex geometry and subtle structural features. 360 degree internal viewing lens can complete the inspection of the whole inner wall of the motor at one Angle, and clearly show the defects in the inner wall.

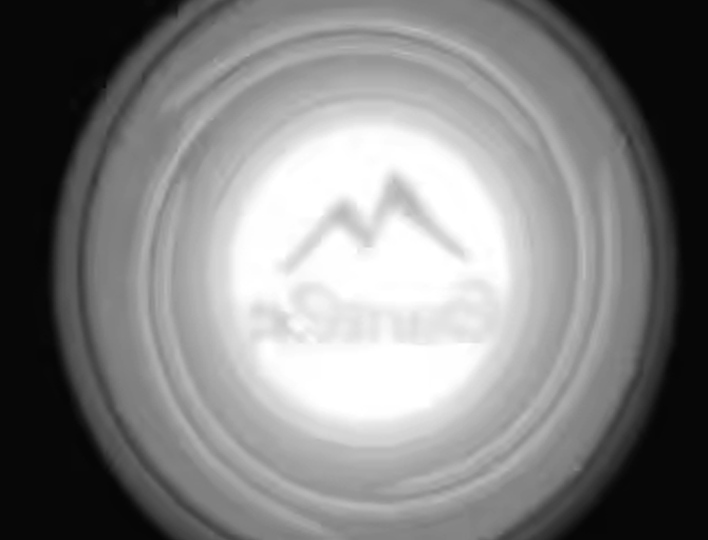

Bottle cap inner wall character detection
There are spiral lines inside the bottle cap, which will have shadows in conventional detection and interfere with the recognition of characters.360 degree internal detection can effectively avoid shadow, and the detection effect is more intuitive.
Metal workpiece external detection
The outer shape of the metal workpiece is irregular, and the number of hooks is large and the volume is small.The distance between the hooks is dense, and the detection is difficult.360 degree external viewing lens can detect the appearance of the workpiece in an all-round way, and the defect recognition accuracy is high.

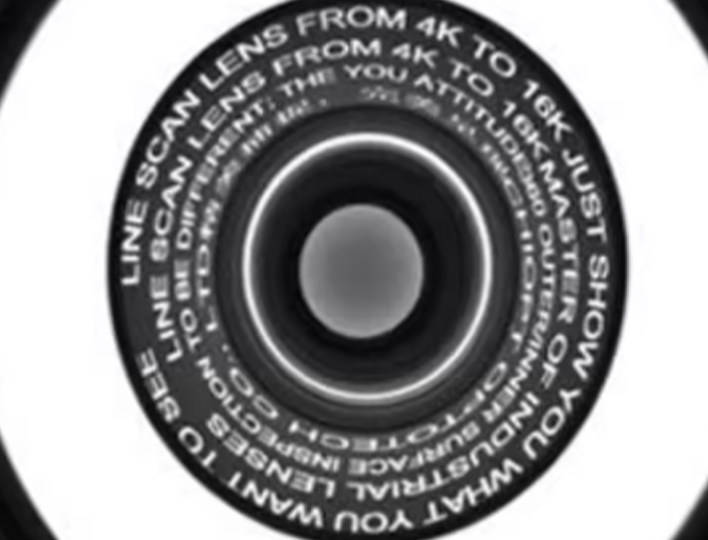

Bottle external character detection
The overall shape of the bottle is cylindrical, and the outer characters surround the bottle. Ordinary detection system can not complete detection, 360 degree viewing lens through high-definition imaging and accurate recognition technology can accurately capture the small defects of the product surface characters.
