HF-LS354K Line Scan Lens 4K7μ 35mm

HIFLY manual focus 4K line scan lens is suitable for professional machine vision imaging,inspection of ultra-long/large size workpieces and other defect detection.

● Focal length 35mm.

● Large image plane：Image circle ф32mm.

● Large stroke focus range：200mm~Infinity.

● High resolution, Low magnification, Excellent imaging effect.

● Anti-shock focusing fastening method.

Model	Focal Length	Resolution	F/NO	Image Circle	Magnification	WD	Mount
HF-LS3508A	35mm	2K10μ/4K7μ	4.5	46.4mm	—	508mm	V
HF-LS254K-003	25mm	4K7μ	4 ~ 22	30mm	0.015x～0.05x	74-1740mm	M42
HF-LS254K-015	25mm	4K7μ	4 ~ 22	30mm	0.125x～0.175x	130-187mm	M42
HF-LS254K-085	25mm	4K7μ	4 ~ 22	30mm	0.05x～0.125x	200-520mm	M42
HF-LS354K	35mm	4K7μ	4 ~ 16	30mm	0.0x～0.5x	88-3518mm	M42
HF-LS408K	40mm	8K7μ	5.6~16	60mm	0.04x-0.25x	200mm-Infinity	M72
HF-LS508K-005	50mm	8K7μ	4 ~ 22	60mm	0.027x～0.07x	735-2000mm	M42/M58/M72
HF-LS508K-010	50mm	8K7μ	4 ~ 22	60mm	0.07x～0.15x	405-735mm	M42/M58/M72
HF-LS508K-020	50mm	8K7μ	4 ~ 22	60mm	0.15x～0.25x	220-350mm	M42/M58/M72
HF-LS608K	60mm	8K7μ	4 ~ 22	60mm	0.05x～0.15x	440-1250mm	M42/M58/M72
HF-LS4016K	40mm	16K3.45μ	4 ~ 16	60mm	0.004x～0.227x	170-987mm	M58
HF-LS8016K	80mm	16K5μ	4 ~ 16	80mm	0.04x～0.33x	303.3-2071.9mm	M42/M58/M72/M90/F
Please contact us learn more models！

Specification

Model	HF-LS354K
Type	Line Scan Lens
Focal Length	35mm
Resolution	4K7μ
F/NO	F4~F16
Magnification	0.01x-0.5x
Working Distance	88mm-3518mm
Mount	M42xP1.0-6g
Temperature range	—20℃~+60℃
Distortion(%)	<0.02
Relative lllumination(%)	>75

Applications Case

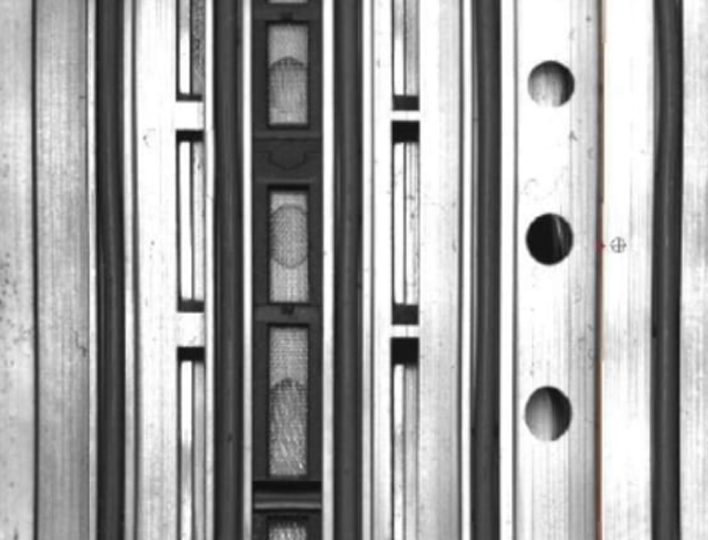

Workpiece valve groove detection

There are many valve grooves outside the cylindrical workpiece, and the normal detection scheme cannot completely observe the defects in the valve groove. Line scan lens uses the advantages of line scan to expand the workpiece into multiple faces, and detects the defects of the workpiece completely.

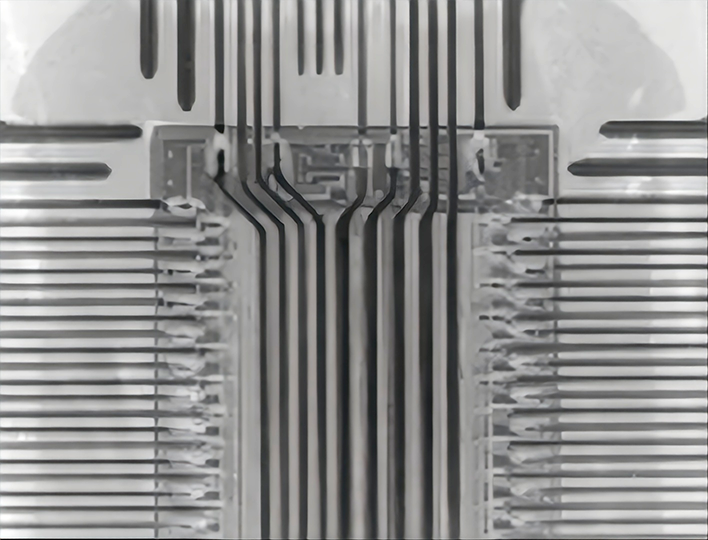

Production line cable identification detection

The image information is obtained and analyzed by scanning the cables on the pipeline. Realize the functions of automatic identification and tracking of the line. Help to improve production efficiency and ensure production safety.

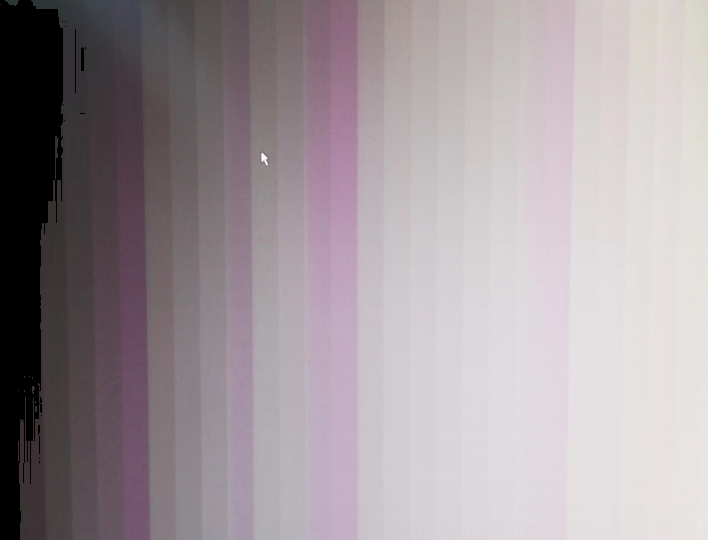

Display screen color detection

In display screen color detection, line scan camera and lens scan the display line by line to obtain the color information of each pixel. Analyze subtle color differences for high-precision color detection.

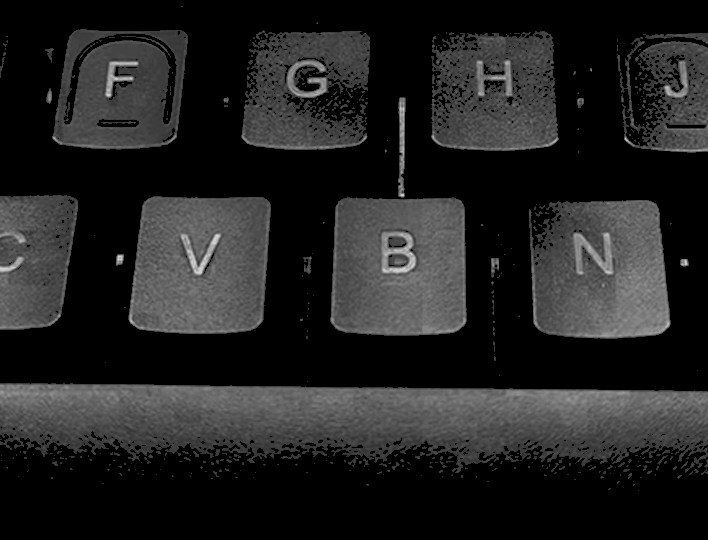

Keyboard surface wear detection

Line scan cameras and lenses can capture subtle defects and wear of keyboard keys, providing high-resolution image data. Its fast processing features meet the needs of keyboard quality inspection.

FAQ

Q1. Can I have a sample order for Line Scan Lens?
A: Yes, sample orders and any orders are acceptable.

Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).

Q3. What's your MOQ for the Line Scan Lens?
A: The MOQ is 1pcs.

Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.

Q5. How to place an order for Line Scan Lens?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.

Q6. Do you support private labels?
A: Yes, we do.

Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.

Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
