KM-2BRD6030 Bar Light DC 24V

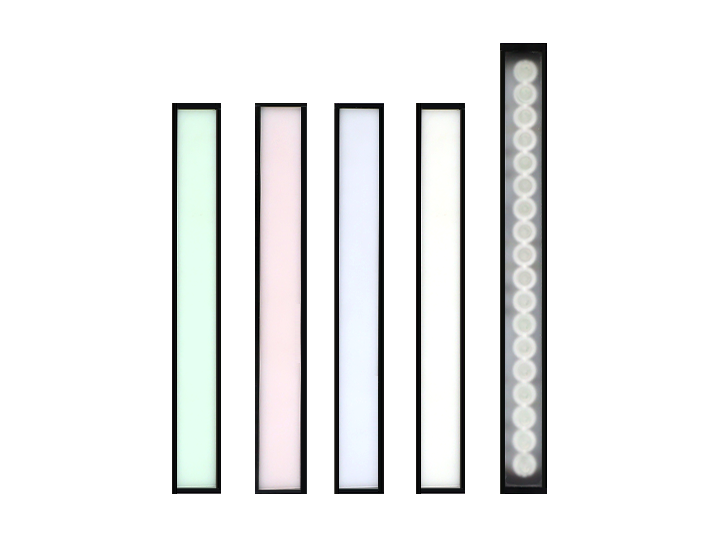

HIFLY LED bar light consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.

● Long: 76mm, Wide: 36mm, High: 26mm.

● Brightness level 255, connected to the controller can be adjusted.

● Life span:50000 hours for red light and 30000 hours for white light.

● Suitable for dimension measurement, defect detection, contour identification and transparent object impurity detection, etc.

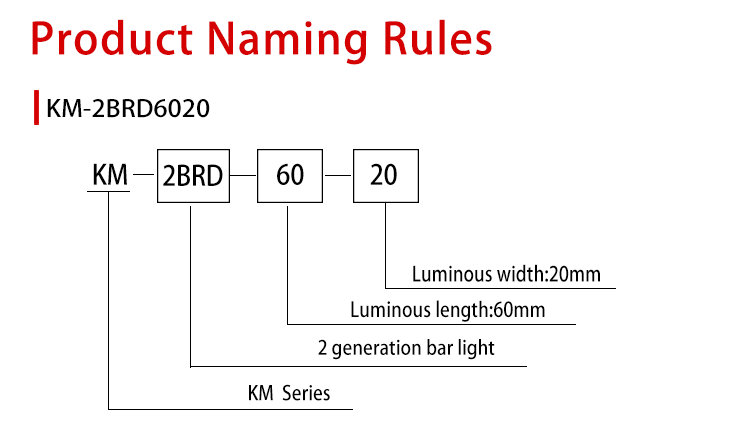

Model	Luminous size(mm)	Color		Voltage(V)	Power(W)		Boundary dimension(mm)			LED Type		Uniformity diffuser
Model	Luminous size(mm)	Color		Voltage(V)	Red	Blue/White/Green	Long	Wide	High	SMD	DIP	Uniformity diffuser
KM-2BRD6020	60x20	Red	Blue/White/Green	24V	1.8	1.8	76	26	26	√	—	√
KM-2BRD9020	90x20	Red	Blue/White/Green	24V	2.2	2.2	106	26	26	√	—	√
KM-2BRD12020	120x20	Red	Blue/White/Green	24V	2.8	2.8	136	26	26	√	—	√
KM-2BRD15020	150x20	Red	Blue/White/Green	24V	3.3	3.6	166	26	26	√	—	√
KM-2BRD18020	180x20	Red	Blue/White/Green	24V	4.2	4.2	196	26	26	√	—	√
KM-2BRD20020	200x20	Red	Blue/White/Green	24V	4.7	5.0	216	26	26	√	—	√
KM-2BRD24020	240x20	Red	Blue/White/Green	24V	5.6	5.6	256	26	26	√	—	√
KM-2BRD30020	300x20	Red	Blue/White/Green	24V	7.0	7.0	316	26	26	√	—	√
KM-2BRD36020	360x20	Red	Blue/White/Green	24V	8.4	8.4	376	26	26	√	—	√
KM-2BRD42020	420x20	Red	Blue/White/Green	24V	9.8	9.8	436	26	26	√	—	√
KM-2BRD48020	480x20	Red	Blue/White/Green	24V	11.2	11.2	496	26	26	√	—	√
KM-2BRD6030	60x30	Red	Blue/White/Green	24V	2.2	2.2	76	36	26	√	—	√
KM-2BRD9030	90x30	Red	Blue/White/Green	24V	2.5	3.8	106	36	26	√	—	√
KM-2BRD12030	120x30	Red	Blue/White/Green	24V	4.4	4.4	136	36	26	√	—	√
KM-2BRD15030	150x30	Red	Blue/White/Green	24V	5.5	5.5	166	36	26	√	—	√
KM-2BRD18030	180x30	Red	Blue/White/Green	24V	6.0	6.6	196	36	26	√	—	√
KM-2BRD20030	200x30	Red	Blue/White/Green	24V	6.5	7.5	216	36	26	√	—	√
KM-2BRD24030	240x30	Red	Blue/White/Green	24V	8.8	8.8	256	36	26	√	—	√
KM-2BRD30030	300x30	Red	Blue/White/Green	24V	11.0	11	316	36	26	√	—	√
KM-2BRD36030	360x30	Red	Blue/White/Green	24V	13.2	13.2	376	36	26	√	—	√
KM-2BRD42030	420x30	Red	Blue/White/Green	24V	15.4	15.4	436	36	26	√	—	√
KM-2BRD48030	480x30	Red	Blue/White/Green	24V	17.6	17.6	496	36	26	√	—	√
KM-HBRD25022	250x22	Red	Blue/White/Green	24V	12	12	—	—	—	√	—	√
KM-HBRD49522	495x22	Red	Blue/White/Green	24V	24	24	—	—	—	√	—	√
KM-HBRD75022	750x22	Red	Blue/White/Green	24V	36	36	—	—	—	√	—	√
KM-HBRD99022	990x22	Red	Blue/White/Green	24V	48	48	—	—	—	√	—	√
Please contact us learn more models !

Specification

Model	KM-2BRD6030
Category	Bar light
LED Type	SMD
Color	red	white	blue	green
Wavelength	620-635nm	—	465-470nm	525-530nm
Color-temperature	—	5500-6500K	—	—
Power	2.6Wmax.	2.6Wmax.	2.6Wmax.	2.6Wmax.
Input Volt	DC24Vmax.
Cable length	0.5m
Terminal Plug	Flat head 3PIN2 pin
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Shell Material	Aluminum Alloy（Oxidative blackened surface）
Cooling	Naturalair cooling
Dimensions	L76mmxW26mmxH26mm
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
ElectricalIn Sulation Capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000V; 10mA/5S
Flammability Rating	IEC60707
Operating Temperatureand Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value
Warranty Period	Under the conditions of use specified by the company,the warranty is two years from the date of shipment,and within two years,if there is a failure problem,it can be repaired or replaced free of charge
Value Added Services	One year free technical support
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller
Matingcable (optional)	1.Light source extension cable 2.Connector adapter cable

Applications Case

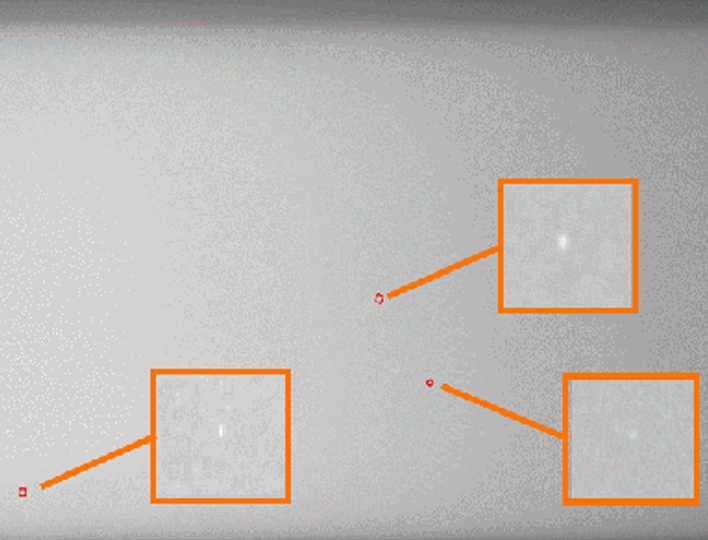

LCD backplane surface defect detection

The LCD screen is composed of a backlight layer and a liquid crystal layer。 The dust and black spots attached to the backlight plate will affect the fitting effect. Bar light more size and high brightness, which can meet the lighting requirements of most back lit plates.

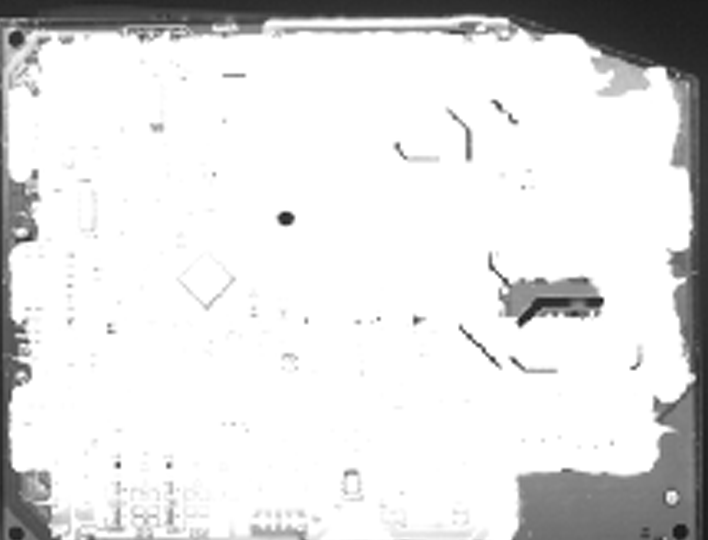

PCB gumming detection

Check whether there is leakage glue after gumming the PCB circuit board, detect the presence of glue on the surface of important components that do not need to be coated.

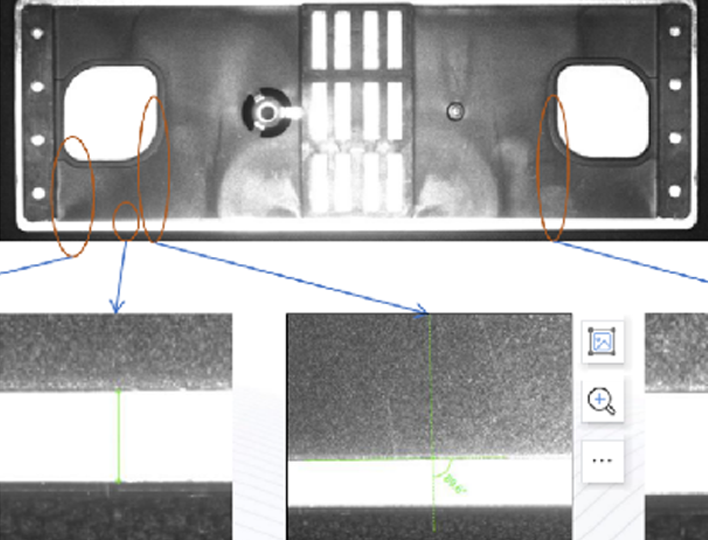

Poor assembly detection

When the product comes from the assembly line, the strip light source is needed to detect the installation, and then the caliper tool is used to detect whether the installation is qualified.

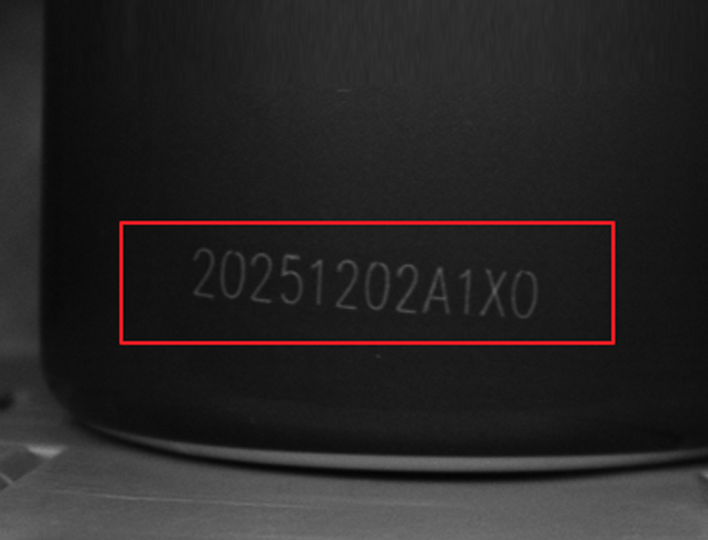

Character recognition detection

After the bottle body passes the date of printing, the printed OCR is detected by machine vision for omission, error or deviation.
