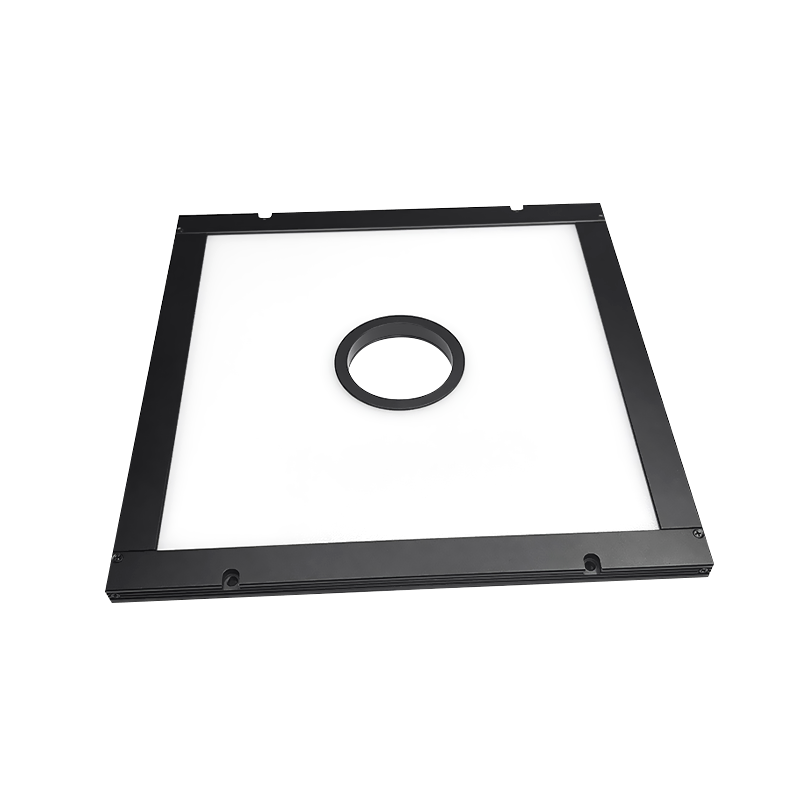

KM-2FLCH150150 Hole Side Backlight DC 24V
|

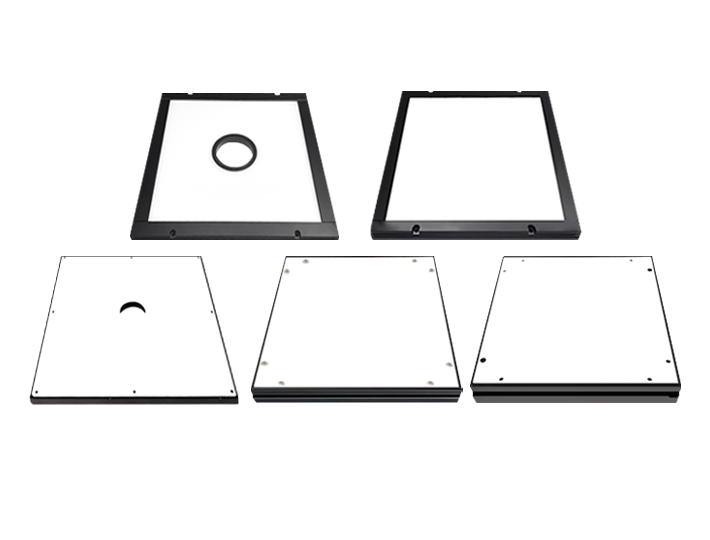

HIFLY hole side backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc. |
|
● Luminous size:150mm*150mm. |
|
● Brightness level 255, connected to the controller can be adjusted. |
|
● Life span:30000 hours for red light and 30000 hours for white light. ● Suitable for high-precision detection such as measurement of the four dimensions of the object,edge breakage detection and transparent object impurity detection,etc. |
| Model | Luminous size(mm) | Color | Voltage(V) | Power(W) | Boundary dimension(mm) | LED Type | Uniformity diffuser | Hole diameter(mm) | |||||
| Red | Blue/White/Green | Long | Wide | High | SMD | DIP | |||||||
| KM-2FLCH150150K50 | 150x150 | Red | Blue/White/Green | 24V | 10.1 | 10.1 | 185 | 185 | 10.5 | √ | — | √ | 50 |
| KM-2FLCH200200K50 | 200x200 | Red | Blue/White | 24V | 13.4 | 13.4 | 235 | 235 | 10.5 | √ | — | √ | 50 |
| KM-2FLCH250250K50 | 250x250 | Red | Blue/White | 24V | 16.8 | 16.8 | 285 | 285 | 10.5 | √ | — | √ | 50 |
| KM-2FLCH300300K50 | 300x300 | Red | Blue/White | 24V | 20.2 | 20.2 | 335 | 335 | 10.5 | √ | — | √ | 50 |
| Please contact us learn more models ! | |||||||||||||

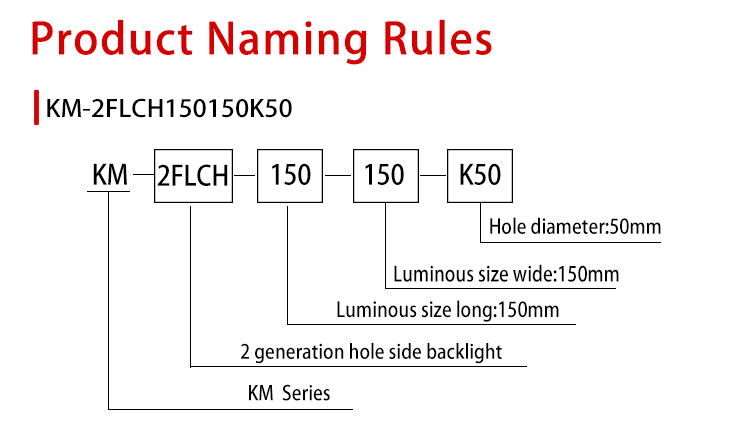

| Model | KM-2FLCH150150K50 | |||
| Category | Hole side backlight | |||
| LED Type | SMD | |||
| Color | red | white | blue | green |
| Wavelength | 620-635nm | — | 465-470nm | 525-530nm |
| Color-temperature | — | 6000-6500K | — | — |
| Power | 10.1Wmax. | 10.1Wmax. | 10.1Wmax. | 10.1Wmax. |
| Input Volt | DC24Vmax. | |||
| Cable length | 1.2m | |||
| Terminal Plug | Flat head 3PIN2 pin | |||
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. | |||
| Shell Material | Aluminum Alloy（Oxidative blackened surface） | |||
| Cooling | Naturalair cooling | |||
| Dimensions | L185mm*W185mm*H10.5mm | |||
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
|||
| ElectricalIn Sulation Capacity | DC500V Insulation resistance>20 megohms | |||
| Pressure Resistance Requirements | AC1000 V10mA/5S | |||
| Flammability Rating | IEC60707 | |||
| Operating Temperatureand Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) | |||
| Lifespan | Under our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
|||
| Warranty Period | Under the conditions of use specified by the company,the warranty is two years from the date of shipment,and within two years,if there is a failure problem,it can be repaired or replaced free of charge | |||
| Value Added Services | One year free technical support | |||
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller | |||
| Matingcable (optional) | 1.Light source extension cable 2.Connector adapter cable | |||

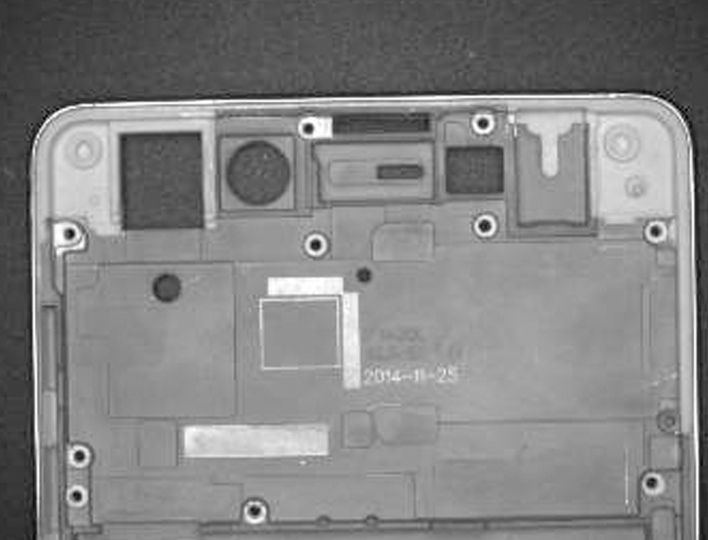

Phone case edge detection
The irradiation area required to detect the object is relatively large, and the shell edge deformation is weak. Hole side backlight luminous size can be customized to meet the detection lighting needs.

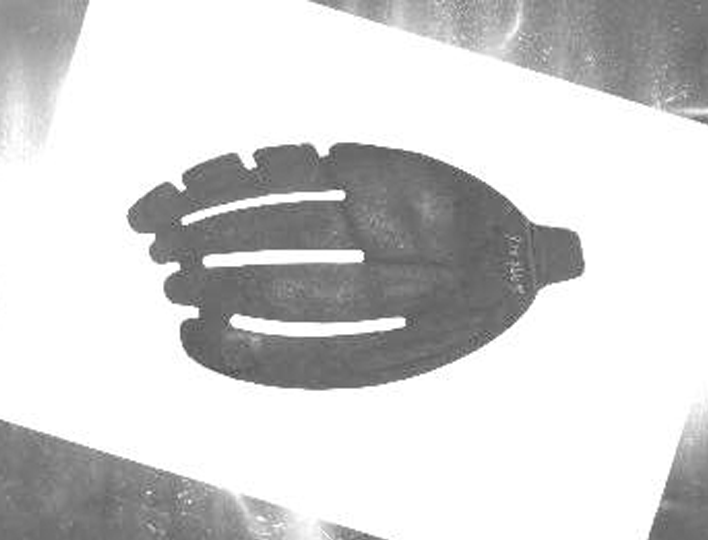

Sole contour detection
The front illumination needs to solve the side shadow, and the backlight with better brightness and uniformity is selected according to the shape of the product.

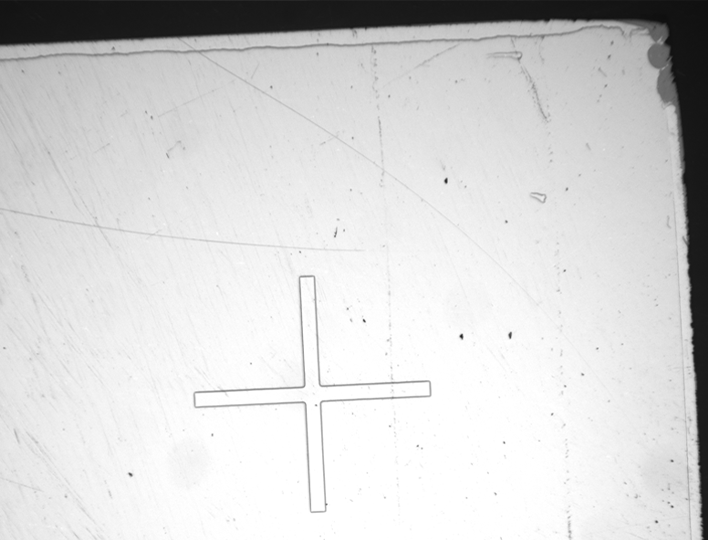

Glass scratch detection
Irradiation area required by larger glass size is relatively large.The scratches are small and difficult to observe. Hole side backlight has uniform luminescence and high brightness to meet the detection requirements.

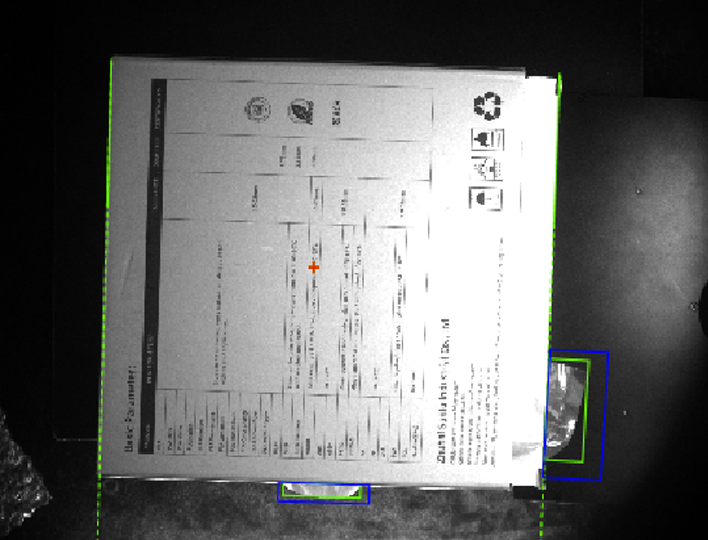

Outer packaging detection
Metal workpieces need to be packaged with adhesive paper after production to prevent scratches. Automatic packaging to detect whether the adhesive paper leakage, leakage adhesive paper will affect the packaging effect.
Q1. Can I have a sample order for Hole Side Backlight?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the Hole Side Backlight?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for Hole Side Backlight?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
