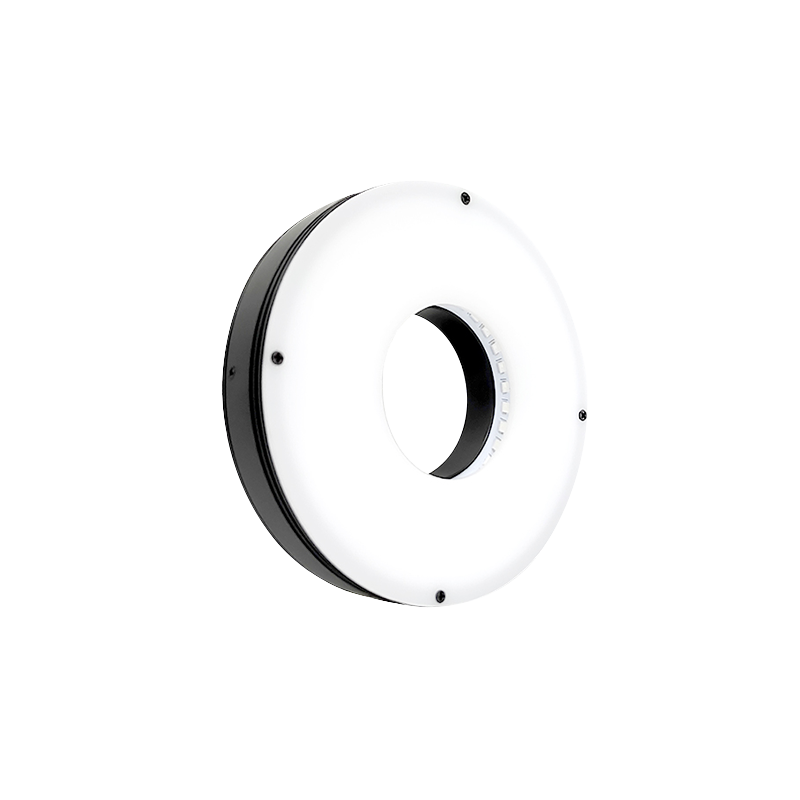

KM-2RND180125A90 90° Ring Light

Home / Products / Machine vision light / Ring light / KM-2RND180125A90 90° Ring Light

KM-2RND180125A90 90° Ring Light High Uniform

HIFLY LED 90° ring light consists of uniformly distributed LED light-emitting units.
Support customized color, power, light diameter, etc.

● Optional DIP/SMD lamp bead type.

● Outside diameter: 180mm. Inside diameter: 125mm.Thickness: 22mm.

● Brightness level 255, connected to the controller can be adjusted.

● Life span:50000 hours for red light and 30000 hours for white light.

● Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.

Model	Angle	Color		Voltage(24V) Power(W)/SMD		Voltage(24V) Power(W)/DIP		Size(mm)			LED Type		Uniformity diffuser
Model	Angle	Color		Red	Blue/White/Green	Red	Blue/White/Green	Internal diameter	Outside diameter	Thickness	SMD	DIP	Uniformity diffuser
KM-2RND6022A30	30°	Red	Blue/White/Green	2.7	2.9	1.6	1.2	22	60	20	√	√	√
KM-2RND7035A30	30°	Red	Blue/White/Green	4.0	4.8	1.6	2.8	35	70	24	√	√	√
KM-2RND8045A30	30°	Red	Blue/White/Green	4.3	5.3	2.2	3.1	45	80	24	√	√	√
KM-2RND9045A30	30°	Red	Blue/White/Green	5.8	6.9	3.1	5.0	45	90	25	√	√	√
KM-2RND10055A30	30°	Red	Blue/White/Green	5.8	6.9	3.7	5.9	55	100	25	√	√	√
KM-2RND12075A30	30°	Red	Blue/White/Green	8.6	9.5	4.7	7.2	75	120	25	√	√	√
KM-2RND150105A30	30°	Red	Blue/White/Green	11.5	12.7	6.2	10.0	105	150	25	√	√	√
KM-2RND180130A30	30°	Red	Blue/White/Green	17.3	19.0	10.3	15.9	130	180	29	√	√	√
KM-2RND200158A30	30°	Red	Blue/White/Green	19.4	23.8	11.3	18.8	158	200	28	√	√	√
KM-2RND250206A30	30°	Red	Blue/White/Green	25.9	28.5	14.1	22.5	206	250	28	√	√	√
KM-2RND5320A45	45°	Red	Blue/White/Green	2.7	2.9	1.2	1.9	20	53	22	√	√	√
KM-2RND6025A45	45°	Red	Blue/White/Green	3.4	3.8	1.6	2.2	25	60	23	√	√	√
KM-2RND7035A45	45°	Red	Blue/White/Green	4.0	3.4	1.9	2.8	35	70	23	√	√	√
KM-2RND8045A45	45°	Red	Blue/White/Green	5.0	5.8	2.2	3.4	45	80	23	√	√	√
KM-2RND9045A45	45°	Red	Blue/White/Green	7.2	6.9	3.4	5.3	45	90	25	√	√	√
KM-2RND10055A45	45°	Red	Blue/White/Green	9.4	9.0	3.7	5.9	55	100	25	√	√	√
KM-2RND12070A45	45°	Red	Blue/White/Green	13.0	14.8	6.2	9.7	70	120	27	√	√	√
KM-2RND150100A45	45°	Red	Blue/White/Green	15.8	19.0	8.1	13.1	100	150	27	√	√	√
KM-2RND180130A45	45°	Red	Blue/White/Green	15.1	23.8	10.3	15.9	130	180	27	√	√	√
KM-2RND200154A45	45°	Red	Blue/White/Green	19.4	23.8	10.3	16.9	154	200	26	√	√	√
KM-2RND250204A45	45°	Red	Blue/White/Green	25.9	29.6	13.8	22.5	204	250	25	√	√	√
KM-2RND6025A60	60°	Red	Blue/White/Green	2.7	2.9	1.6	2.2	25	60	22	√	√	√
KM-2RND7035A60	60°	Red	Blue/White/Green	4.0	4.8	1.9	2.8	35	70	22	√	√	√
KM-2RND8045A60	60°	Red	Blue/White/Green	4.3	5.3	2.2	3.1	45	80	22	√	√	√
KM-2RND9040A60	60°	Red	Blue/White/Green	7.2	7.9	3.1	5.0	40	90	24	√	√	√
KM-2RND10050A60	60°	Red	Blue/White/Green	7.9	8.4	3.7	5.6	50	100	24	√	√	√
KM-2RND12060A60	60°	Red	Blue/White/Green	11.5	13.2	5.9	9.0	60	120	25	√	√	√
KM-2RND15095A60	60°	Red	Blue/White/Green	13.0	18.0	8.1	12.5	95	150	25	√	√	√
KM-2RND180125A60	60°	Red	Blue/White/Green	17.3	23.2	10.0	15.6	125	180	25	√	√	√
KM-2RND208154A60	60°	Red	Blue/White/Green	21.6	25.3	11.3	17.5	154	208	23	√	√	√
KM-2RND250202A60	60°	Red	Blue/White/Green	23.0	25.3	13.8	22.5	202	250	24	√	√	√
KM-2RND6030A90	90°	Red	Blue/White/Green	1.9	2.9	1.2	2.2	30	60	22	√	√	√
KM-2RND7040A90	90°	Red	Blue/White/Green	2.4	3.4	1.9	2.8	40	70	22	√	√	√
KM-2RND8040A90	90°	Red	Blue/White/Green	3.8	5.8	2.8	4.4	40	80	22	√	√	√
KM-2RND9040A90	90°	Red	Blue/White/Green	5.3	8.2	4.1	6.6	40	90	22	√	√	√
KM-2RND10040A90	90°	Red	Blue/White/Green	7.2	11.5	5.3	8.4	40	100	22	√	√	√
KM-2RND12050A90	90°	Red	Blue/White/Green	8.6	13.4	6.9	10.6	50	120	22	√	√	√
KM-2RND15095A90	90°	Red	Blue/White/Green	10.6	16.3	7.8	12.2	95	150	22	√	√	√
KM-2RND180125A90	90°	Red	Blue/White/Green	13.0	20.6	9.7	15.3	125	180	22	√	√	√
KM-2RND200154A90	90°	Red	Blue/White/Green	13.4	21.1	11.3	17.5	154	200	20	√	√	√
KM-2RND250204A90	90°	Red	Blue/White/Green	17.3	26.9	15.0	22.5	204	250	20	√	√	√
Please contact us learn more models !

Specification

Model	KM-2RND180125A90
Category	90° Ring light
LED Type	SMD/DIP
Color	red	white	blue	green
Wavelength	620-635nm	-	465-470nm	525-530nm
Colortemper ature	-	6000K-6500K	-	-
Power	8.4W max.	13.4W max.	13.4W max.	13.4W max.
Input Volt	DC 24V max.
Cable length	0.5m
Terminal Plug	Flat head 3PIN 2 pin
Connector Definition	1 : positive (+) red; 2 : left blank; 3 : negative (-) black.
Shell Material	Aluminum Alloy（Oxidative blackened surface）
Cooling	Natural air cooling
Dimensions	φ180mm x φ125mm x H22mm
Shell Hardness Parameters	Static load 230N±10N, time 5 minutes contact area: diameter 30MM Energy level: 5J elements: steel ball diameter 50MM, 500g ± 25g
Electrical Insulation Capacity	DC500V Insulation resistance >20 megohms
Pressure Resistance Requirements	AC1000V; 10mA/5S
Flammability Rating	IEC60707
Operating Temperature and Humidity	Temperature : 0 to 50ºC, Humidity : 20% to 85%RH (non-condensing)
Lifespan	Under our specified conditions of use, 50,000 hours for red light and 30,000 hours for white light, the brightness is reduced to 50% of the factory value
Warranty Period	Under the conditions of use specified by the company, the warranty is two years from the date of shipment, and within two years, if there is a failure problem, it can be repaired or replaced free of charge
Value Added Services	One year free technical support
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Applications Case

Product character reading

Test requirements: light source will illuminate the product to make the character and background form a color difference, static trigger photography; The character is recognized and sent to the plc.

Keyhole Angle positioning

The position of the keyhole is accurately captured, the camera takes a static shot, finds the coordinates and gives the Angle value.

Auto parts defect detection

Use horizontal low-angle illumination to illuminate the six corners of the bulge, and the background is gray and black, so as to judge the defect of the object.

Nut defect detection

The edge is illuminated by the horizontal and low Angle illumination, the scratches do not reflect the light and the background is gray and black, so as to judge the object defects.

FAQ

Q1. Can I have a sample order for 90° Ring Light?
A: Yes, sample orders and any orders are acceptable.

Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).

Q3. What's your MOQ for the 90° Ring Light?
A: The MOQ is 1pcs.

Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.

Q5. How to place an order for 90° Ring Light?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.

Q6. Do you support private labels?
A: Yes, we do.

Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.

Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
