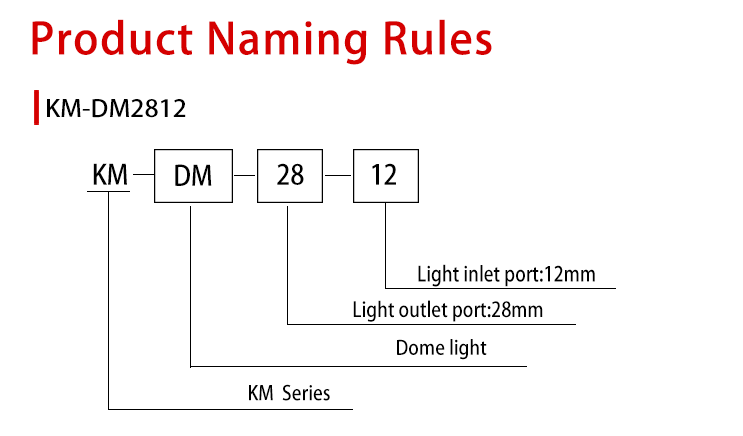

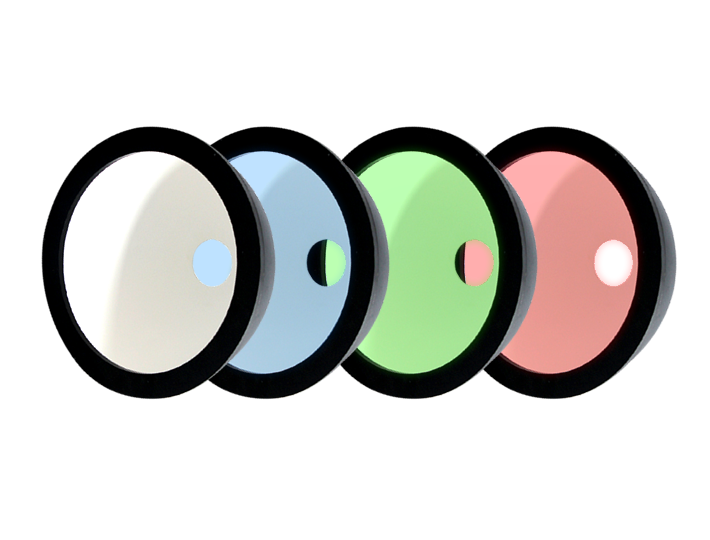

KM-DM2812 Dome Light DC 24V
|
HIFLY dome light consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc. |
|
● Light inlet port: 12mm. Light outlet port: 28mm. |
|
● Brightness level 255, connected to the controller can be adjusted. |
|
● Life span:50000 hours for red light and 30000 hours for white light. ● Suitable for detecting reflective, uneven surfaces and arc surface detection, etc. |
| Model | Luminous size(mm) | Color | Voltage(V) | Power(W) | Boundary dimension(mm) | LED Type | |||||
| Light inlet port | Light outlet port | Red | Blue/White/Green | Outner diamete | Height | SMD | DIP | ||||
| KM-DM2812 | 12 | 28 | Red | Blue/White/Green | 24V | 0.7 | 1 | 44 | 30.2 | √ | — |
| KM-DM6228 | 28 | 62 | Red | Blue/White/Green | 24V | 2 | 3.5 | 84 | 48 | √ | — |
| KM-DM2.0-9230 | 30 | 92 | Red | Blue/White/Green | 24V | 7.6 | 10 | 135 | 63 | √ | — |
| KM-DM13440 | 40 | 134 | Red | Blue/White/Green | 24V | 10 | 12.0 | 185 | 89 | √ | — |
| KM-DM2.0-21650 | 50 | 216 | Red | Blue/White/Green | 24V | 16 | 22 | 266 | 126 | √ | — |
| KM-DM30060 | 60 | 300 | Red | Blue/White/Green | 24V | 28 | 32.0 | 370 | 172 | √ | — |
| Please contact us learn more models ! | |||||||||||
| Model | KM-DM2812 | |||
| Category | Dome light | |||
| LED Type | SMD | |||
| Color | red | white | blue | green |
| Wavelength | 620-635nm | — | 465-470nm | 525-530nm |
| Color-temperature | — | 6000-6500K | — | — |
| Power | 0.7Wmax. | 1Wmax. | 1Wmax. | 1Wmax. |
| Input Volt | DC24Vmax. | |||
| Cable length | 1.2m | |||
| Terminal Plug | Flat head 3PIN2 pin | |||
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. | |||
| Shell Material | Aluminum Alloy（Oxidative blackened surface） | |||
| Cooling | Naturalair cooling | |||
| Dimensions | Φ44mmxH30.2mm | |||
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
|||
| ElectricalIn Sulation Capacity | DC500V Insulation resistance>20 megohms | |||
| Pressure Resistance Requirements | AC1000 V10mA/5S | |||
| Flammability Rating | IEC60707 | |||
| Operating Temperatureand Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) | |||
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
|||
| Warranty Period | Under the conditions of use specified by the company,the warranty is two years from the date of shipment,and within two years,if there is a failure problem,it can be repaired or replaced free of charge | |||
| Value Added Services | One year free technical support | |||
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller | |||
| Matingcable (optional) | 1.Light source extension cable 2.Connector adapter cable | |||

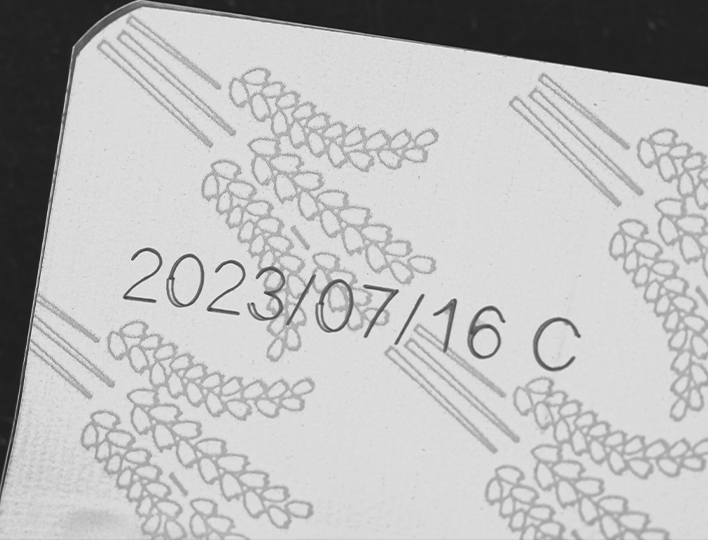

Breadbag production date detection
There are many kinds of bread bags, different colors and reflective. With pattern interference, it is difficult to detect the production date. The dome Light has target illumination and less background interference.

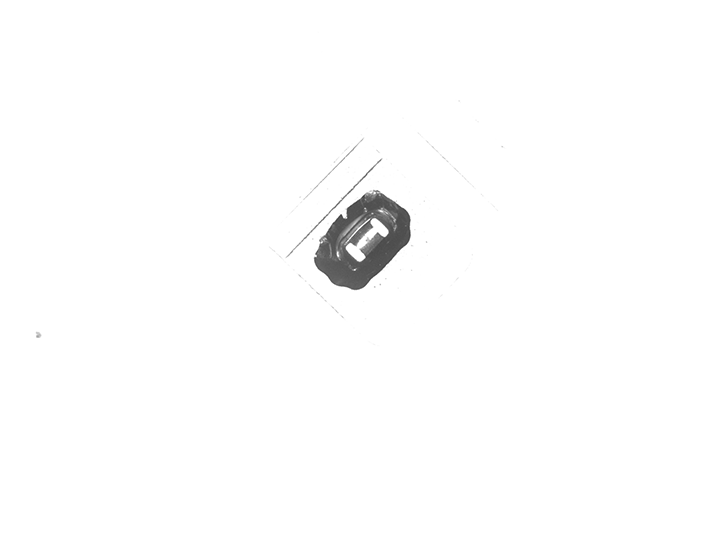

Product adhesive detection
The product is small and requires high detection accuracy.Need to detect missing parts, leakage glue, less glue, no glue on the surface of the parts, more glue, glue damage, glue offset and so on.

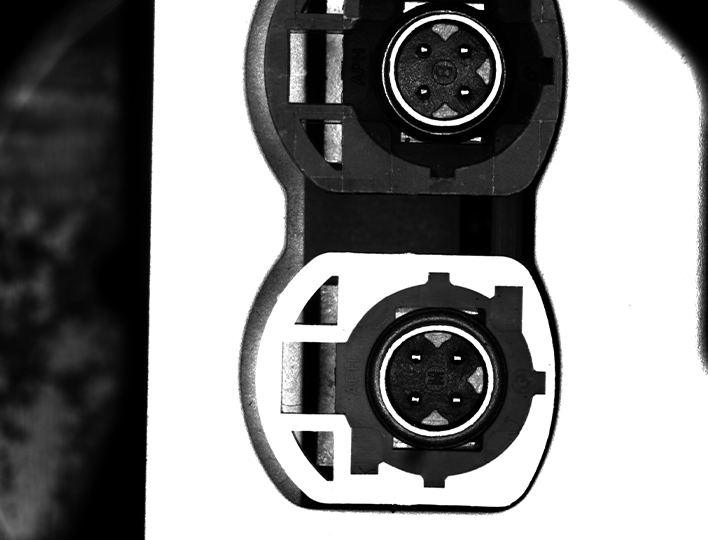

Automotive controller lead pin detection
The controller lead needle is related to the normal use of the vehicle, and the quality problem of the product can be avoided by detecting the defective lead needle in production.

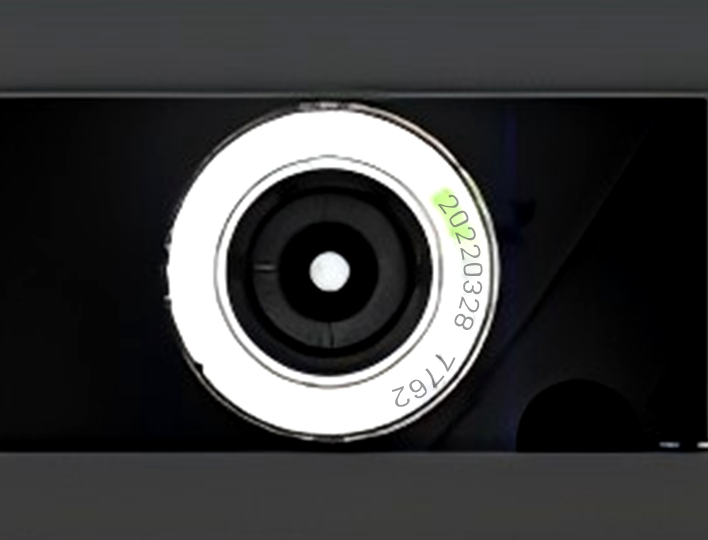

Chassis product character recognition
Angle of the product is not fixed and there is reflection. When the turntable rotates the product, it recognizes the characters on the surface of the ball cutter bush, corrects the information and sends it to the host computer.
Q1. Can I have a sample order for Dome Light?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the Dome Light?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for Dome Light?
A: 1. Confirm parameters such as FOV and WD;
2. Confirm the shape, state, material and color of the detected object;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
