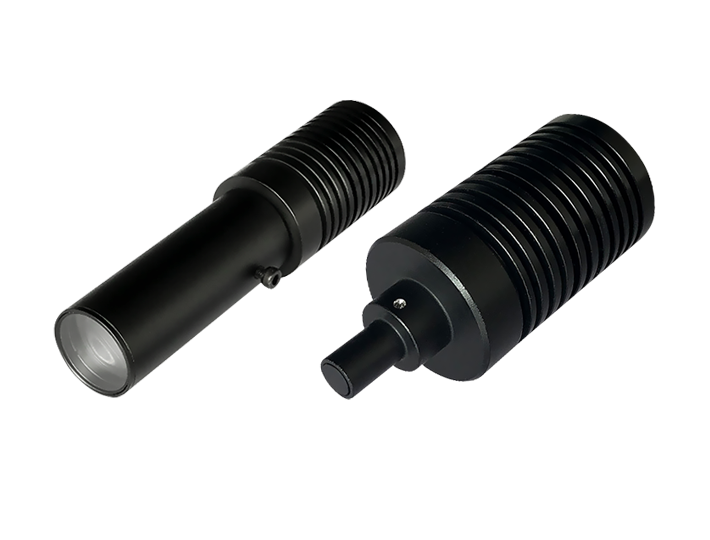

KM-SP2403 Spot Light DC 3V
|
HIFLY spot light consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous outsid diameter, etc. |
|
● Luminous outsid diameter: 24mm. Inside diameter: 22mm. |
|
● Brightness level 255, connected to the controller can be adjusted. |
|
● Life span:30000 hours for red light and 30000 hours for white light. ● Suitable for micro element detection, LCD panel detection and liquid crystal glass base calibration, etc. |

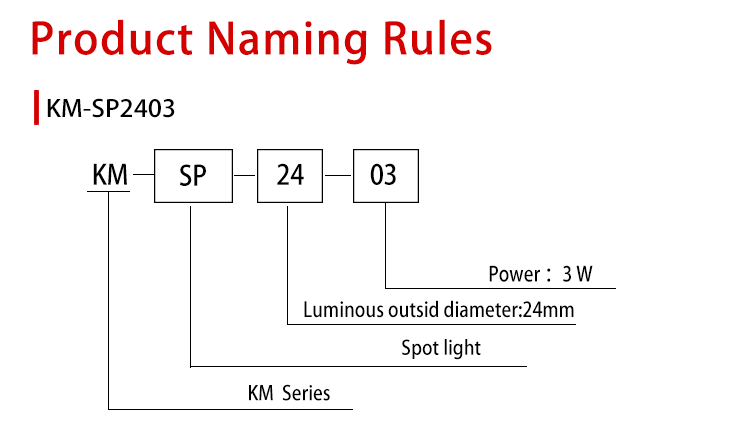

| Model | Luminous size(mm) | Color | Voltage(V) | Power(W) | Boundary dimension(mm) | LED Type | |||||
| Outsid diameter | Inside diameter | Red | Blue/White/Green | Outner diamete | Height | SMD | DIP | ||||
| KM-SP2403 | 24 | 22 | Red | Blue/White/Green | 3V | 3 | 3 | 30 | 120 | √ | — |
| KM-SP2.0-0803 | 08 | 06 | Red | Blue/White/Green | 3V | 3 | 3 | 30 | 69.5 | √ | — |
| KM-SP0803 | 08 | 06 | Red | Blue/White/Green | 3V | 3 | 3 | 24 | 69 | √ | — |
| Please contact us learn more models ! | |||||||||||
| Model | KM-SP2403 | |||
| Category | Spot light | |||
| LED Type | SMD | |||
| Color | red | white | blue | green |
| Wavelength | 620-635nm | — | 465-470nm | 525-530nm |
| Color-temperature | — | 6000-6500K | — | — |
| Power | 3Wmax. | 3Wmax. | 3Wmax. | 3Wmax. |
| Input Volt | 3V | |||
| Cable length | 1.2m | |||
| Terminal Plug | Flat head 3PIN2 pin | |||
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. | |||
| Shell Material | Aluminum Alloy（Oxidative blackened surface） | |||
| Cooling | Naturalair cooling | |||
| Dimensions | Φ24mmxφ30mmH120mm | |||
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
|||
| ElectricalIn Sulation Capacity | DC500V Insulation resistance>20 megohms | |||
| Pressure Resistance Requirements | AC1000 V10mA/5S | |||
| Flammability Rating | IEC60707 | |||
| Operating Temperatureand Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) | |||
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
|||
| Warranty Period | Under the conditions of use specified by the company,the warranty is two years from the date of shipment,and within two years,if there is a failure problem,it can be repaired or replaced free of charge | |||
| Value Added Services | One year free technical support | |||
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller | |||
| Matingcable (optional) | 1.Light source extension cable 2.Connector adapter cable | |||

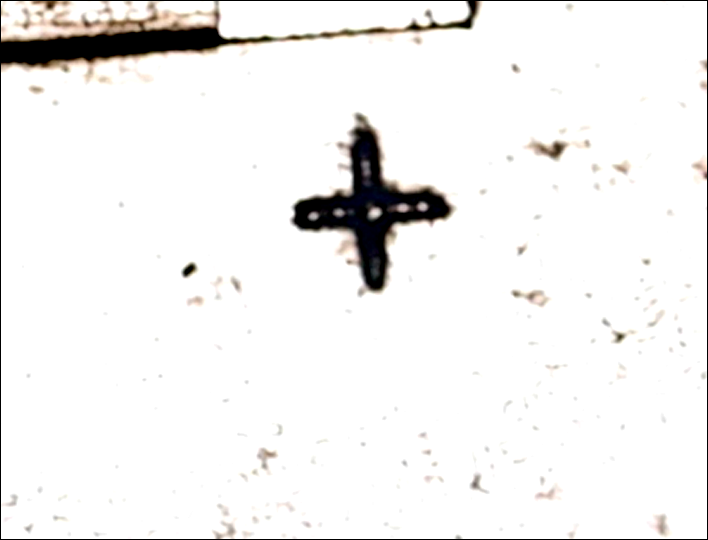

Mobile phone circuit board Mark point to point detection
Small field of view, high light uniformity requirements. With point light and coaxial light lens irradiation, convex Mark point, high accuracy of positioning.

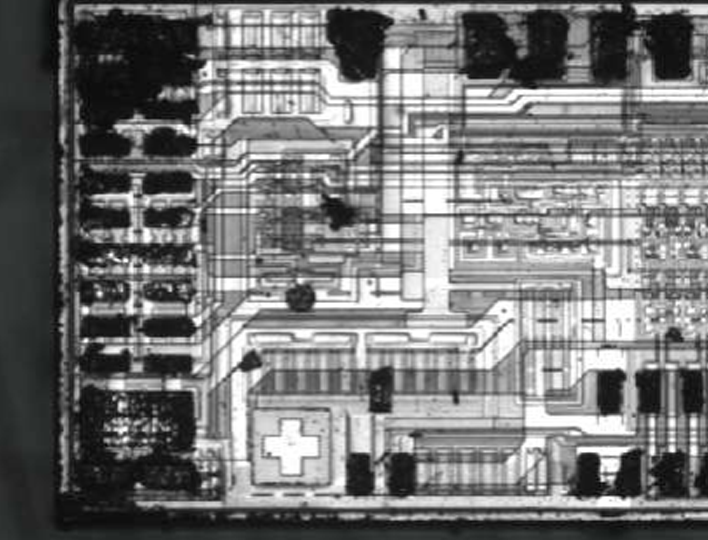

Metal parts defect detection
Metal parts are small in size and defects are imperceptible. The defects can be clearly observed by using spot light and high precision coaxial telecentric lens.

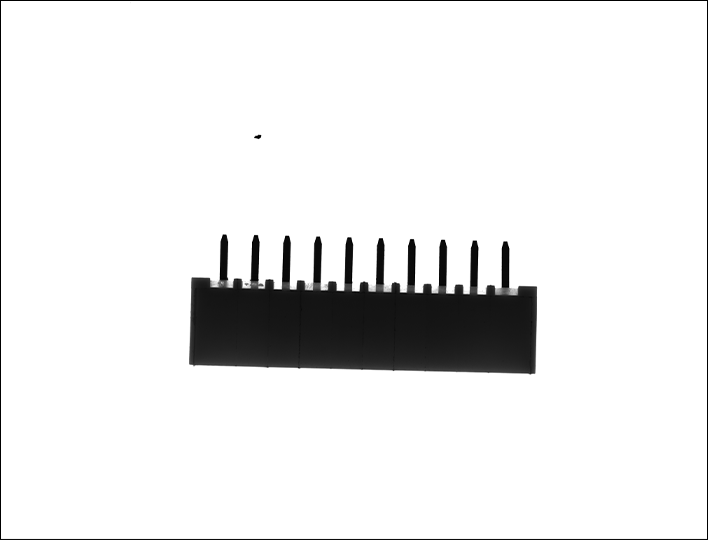

Terminal spacing detection
The terminal products have small volume and small spacing.Use of point light can accurately illuminate the spacing between products, easy to judge the quality of products.

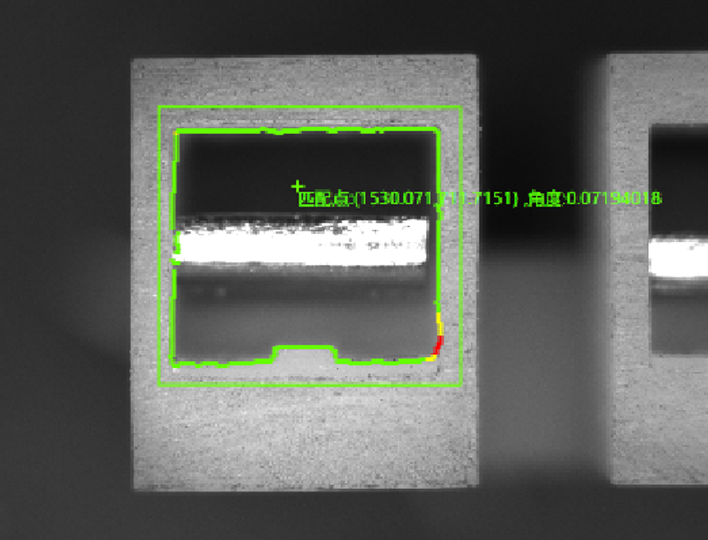

Point insertion needle detection
Camera,lens and light are fixed on the production lin. The product shell is transported to the specified position. Camera takes pictures to give the coordinate positioning, and the needle body fits according to the coordinates.
