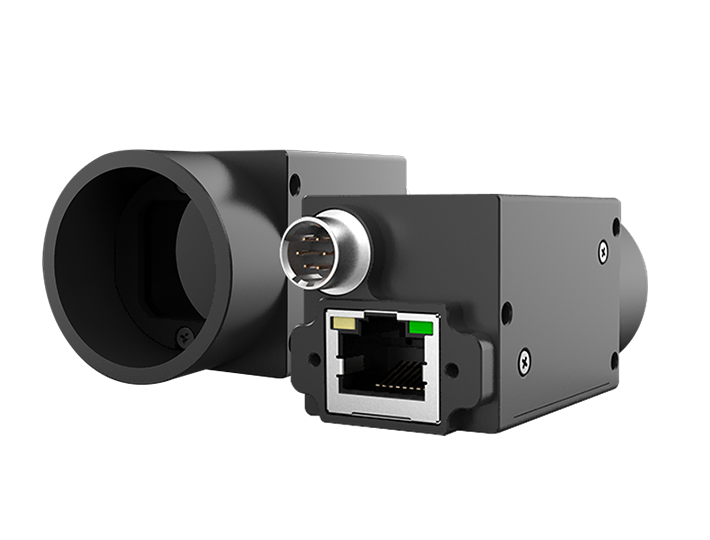

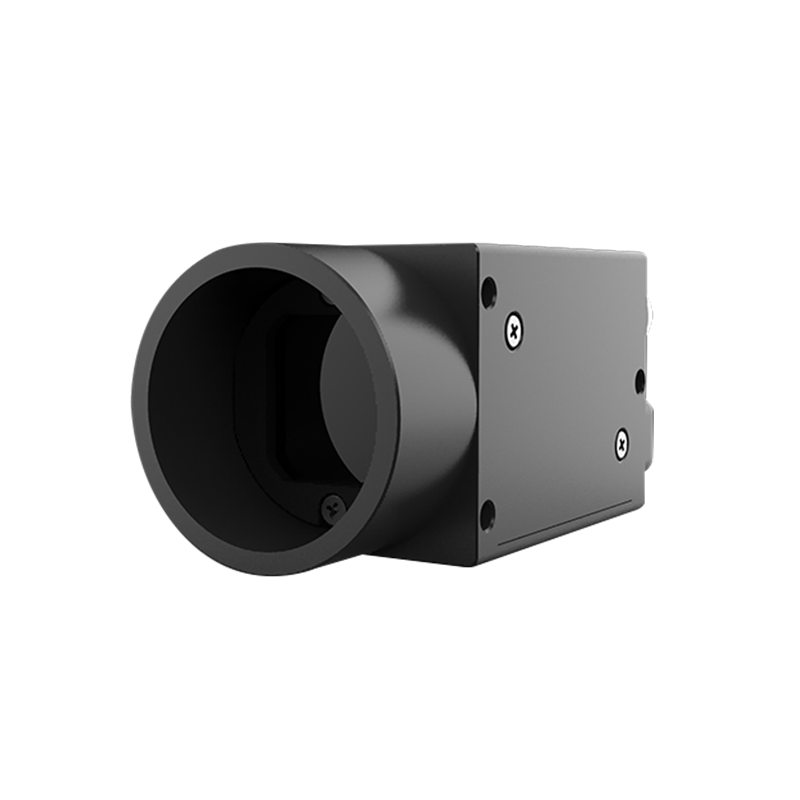

MV-1000RC-GE/M Gige Industrial Camera 1/2.3" 10MP 8FPS
|
This series of GigE area scan cameras includes color and mono. Long-distance transmission up to 100 meters. ● SDK plug and play. ● Supporting 12bit raw data output. ● Multiple cameras work at the same time. ● Supports PC Linux system and ARM Linux system. ● Compatible with Vision protocol and other brand vision software. |
| Model | Effective pixels | Sensor | Shutter | Max resolution | Pixel size | Frame rate(FPS) | Target size | Mini exposure | Sensor model | Color |
| MV-31GM-GE | 0.3MP | CMOS | Global | 752×480 | 6.0μm | 108.25 | 1/3" | 0.017ms | MT9V024 | Mono |
| MV-D32M-GE/C | 0.3MP | CMOS | Global | 640×480 | 7.4μm | 164.75 | 1/3" | 0.0001ms | SHARP | Color/Mono |
| MV-33GM-GE | 0.3MP | CMOS | Global | 640×480 | 8.0μm | 160 | 1/2.7" | 0.006ms | SmartSens | Color/Mono |
| MV-34GC-GE/M | 0.3MP | CMOS | Global | 640×480 | 4.8μm | 392.25 | 1/4" | 0.004ms | PYTHON | Color/Mono |
| MV-40GM-GE | 0.4MP | CMOS | Global | 720×540 | 6.9μm | 299 | 1/2.9" | 0.005ms | IMX287 | Mono |
| MV-130RM-GE | 1.3MP | CMOS | Rolling | 1280×1024 | 5.2μm | 30 | 1/2" | 0.032ms | MT9M001 | Mono |
| MV-122GC-GE | 1.3MP | CMOS | Global | 1280×960 | 3.75μm | 72.25 | 1/3" | 0.014ms | AR0134 | Color |
| MV-123GM-GE | 1.2MP | CMOS | Global | 1280×960 | 3.75μm | 60.75 | 1/3" | 0.016ms | AR0135 | Mono |
| MV-130RC-GE | 1.2MP | CMOS | Rolling | 1280×960 | 3.75μm | 60.5 | 1/3" | 0.016ms | AR0130 | Color |
| MV-133GM-GE | 1.3MP | CMOS | Global | 1280×1024 | 4μm | 91 | 1/2.7" | 0.0061ms | SC130GS | Mono |
| MV-134GC-GE / M | 1.3MP | CMOS | Global | 1280×1024 | 4.8μm | 91.5 | 1/2" | 0.008ms | PYTHON | Color/Mono |
| MV-200RC-GE | 2MP | CMOS | Rolling | 1920×1080 | 2.9μm | 30 | 1/2.8" | 0.02ms | SONY | Color |
| MV-200GC-GE/M | 2MP | CMOS | Global | 1600×1200 | 4.5μm | 60 | 1/1.8" | 0.015ms | EV76C570 | Color/Mono |
| MV-230GC-GE/M | 2MP | CMOS | Global | 1920×1200 | 4.8μm | 51 | 2/3" | 0.005ms | PYTHON2000 | Color/Mono |
| MV-203GC-GE/M | 2MP | CMOS | Global | 1600×1200 | 4.5μm | 61.5 | 1/1.7" | 0.0126ms | IMX430 | Color/Mono |
| MV-231GC-GE/M | 2.3MP | CMOS | Global | 1920×1200 | 5.86μm | 40.25 | 1/1.2" | 0.02ms | IMX249 | Color/Mono |
| MV-232GC-GE/M | 2.3MP | CMOS | Global | 1920×1200 | 3μm | 52 | 1/2.6" | 0.014ms | AR0234 | Color/Mono |
| MV-300GC-GE/M | 3MP | CMOS | Global | 2048×1536 | 3.45μm | 38 | 1/1.8" | 0.016ms | IMX265 | Color/Mono |
| MV-500GC-GE/M | 5MP | CMOS | Global | 2448×2048 | 3.45μm | 24 | 2/3" | 0.019ms | IMX264 | Color/Mono |
| MV-501RC-GE/M | 5MP | CMOS | Rolling | 2592×1944 | 2.2μm | 24 | 1/2.5" | 0.02ms | AR0522 | Color/Mono |
| MV-502GC-GE/M | 5MP | CMOS | Global | 2592×2048 | 4.8μm | 23 | 1" | 0.005ms | PYTHON5000 | Color/Mono |
| MV-535GC-GEM | 5MP | CMOS | Global | 2592×2048 | 3.2μm | 22 | 2/3" | 0.042ms | XGS5000 | Color/Mono |
| MV-508RM-GE | 5MP | CMOS | Rolling | 2744×1836 | 4.8μm | 5 | 1" | 0.057ms | OEM | Mono |
| MV-630RC-GE/M | 6.3MP | CMOS | Rolling | 3088×2064 | 2.4μm | 18.75 | 1/1.8" | 0.025ms | IMX178 | Color/Mono |
| MV-800RC-GE/M | 8MP | CMOS | Rolling | 3840×2160 | 2.0μm | 14.25 | 1/1.8" | 0.062ms | OEM | Color/Mono |
| MV-1000RC-GE/M | 10MP | CMOS | Rolling | 3664×2748 | 1.67μm | 8 | 1/2.3" | 0.043ms | MT9J003 | Color/Mono |
| MV-1200RC-GE/M | 12MP | CMOS | Rolling | 4000×3000 | 1.85μm | 9.75 | 1/1.7" | 0.01ms | IMX226 | Color/Mono |
| MV-1202RC-GE/M | 12MP | CMOS | Rolling | 4000×3000 | 1.6μm | 9.75 | 1/2" | 0.034ms | AR1202 | Color/Mono |
| MV-1600RC-GE/M | 16MP | CMOS | Rolling | 4608×3546 | 1.34μm | 7 | 1/2.3" | 0.039ms | IMX206 | Color/Mono |
| MV-2001RC-GE/M | 20MP | CMOS | Rolling | 5488×3672 | 2.4μm | 6 | 1" | 0.044ms | IMX183 | Color/Mono |
| MV-D32C-GE/M | 0.3MP | CCD | Global | 640×480 | 7.4μm | 164.75 | 1/3" | 0.0001ms | SHARP | Color/Mono |
| MV-D125C-GE/M | 1.3MP | CCD | Global | 1280×960 | 3.75μm | 43.5 | 1/3" | 0.0001ms | SHARP | Color/Mono |
| MV-D200M-GE/C | 2MP | CCD | Global | 1600×1200 | 4.4μm | 27.5 | 1/1.8" | 0.0001ms | SHARP | Color/Mono |
| MV-D500C-GE/M | 5MP | CCD | Global | 2448×2048 | 3.45μm | 9.25 | 2/3" | 0.0001ms | SHARP | Color/Mono |
| MV-C404RC-GE/M | 4MP | CMOS | Rolling | 2048×2048 | 5.94μm | 27 | 1.1" | 0.017ms | OEM | Color/Mono |
| MV-C501RM-GE | 5MP | CMOS | Rolling | 2640×1968 | 6.6μm | 21.5 | 4/3" | 0.011ms | OEM | Mono |
| MV-C1206C-GE/M | 12MP | CMOS | Global | 4112×3088 | 3.5μm | 9.25 | 1.1" | 0.0327ms | QEM | Color/Mono |
| MV-C1606GC-GE/M | 16MP | CMOS | Global | 4112×4112 | 3.5μm | 7.25 | 4/3" | 0.0327ms | OEM | Color/Mono |
| MV-S202C-GE/M | 2MP | CMOS | Global | 1920x1200 | 4.8μm | 51 | 2/3" | 0.005ms | PYTHON2000 | Color/Mono |
| MV-S507C-GE/M | 5MP | CMOS | Global | 2448x2048 | 3.4μm | 24 | 2/3" | 0.0201ms | GMAX3405 | Color/Mono |
| MV-F401C-GE/M | 4MP | CMOS | Global | 2048×2048 | 5.5μm | 29 | 1" | 0.016ms | OEM | Color/Mono |
| MV-F880GC-GE/M | 8.9MP | CMOS | Global | 4096×2160 | 3.45μm | 13.5 | 1" | 0.034ms | IMX304 | Color/Mono |
| MV-F1202GC-GE/M | 12MP | CMOS | Global | 4090×3000 | 3.45μm | 9.5 | 1.1" | 0.034ms | IMX304 | Color/Mono |
| MV-F1205C-GE/M | 12MP | CMOS | Global | 4096×3072 | 3.2μm | 9.5 | 1" | 0.031ms | XGS12000 | Color/Mono |
| Please contact us learn more models！ | ||||||||||
| Model | MV-1000RC-GE/M |
| Sensor | 1/2.3”CMOS, MT9J003 |
| Shutter | Rolling Shutter (Support GRR mode) |
| Color | Color/Mono |
| Pixel size | 1. 67X1. 67μm� |
| Effective Pixels | 10MP (3664X2748) |
| Resolution @ frame rate | 3664X2748@8FPS |
| Pixel Bit Depth | 12bit |
| Sensitivity | 0.31V/lux-s 550nm |
| I/O Port | 1 way optical isolation input, one way optical isolation output; Optional 3 input 4 output |
| Synchronization | Continuous / software trigger / hardware trigger |
| Maximum Gain | 8 |
| Exposure Time(ms) | 0.043~950 |
| Filter | Standard 650nm Infrared Cut-off Filter/Standard double-sided AR-enhanced film |
| Frame Buffer | 32M Bytes |
| Camera Custom Data | 2K Bytes |
| Video Output Format | Bayer8/Bayer12,Mono8/Mono12 |
| Visual Standard Protoco | GigE Vision V1.2, GenICam |
| Lens Mount | C-mount is default, optional C or CS interface ( can provide M12 lens transfer interface accessories) |
| Data Interface | RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard |
| Power Requirements | 9~24V(POE is optional) |
| Powerconsumption | < 2 . 5 W |
| Dimensions | 2 9 ( m m ) X 2 9 ( m m ) X 4 0 ( m m )(excluding lens base and rear housing ports) |
| Weight | < 7 5 g |
| Working Temperature | 0 ~ 5 0°C |
| Working Humidity | 20-80% (Non-condensing) |
| Storage Temperature | -30-60°C |
| Storage Humidity | 20-95% (Non-condensing) |
| Support System | WINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable) |
| Drivers | DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components |
| Pregramming Language | C / C++ / C# / VB6 / VB.NET / Delphi / BCB / Python |
| Programmable Control | Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color.trigger mode, frame rate control |

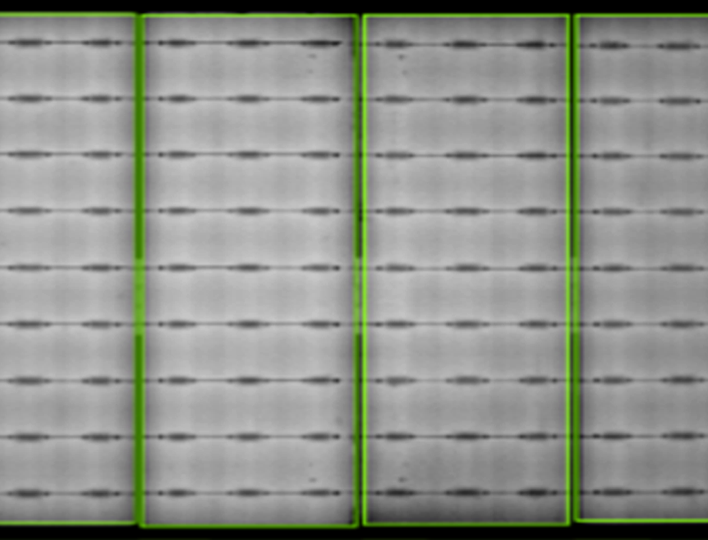

Solar cell EL defect detection
The common defects of the battery are virtual welding, cracking, fragmentation and so on. Directly affect the component power, reduce the life of the component or cause scrap. Manual detection has low efficiency and large missed detection rate, and deep learning object detection algorithm is more efficient.

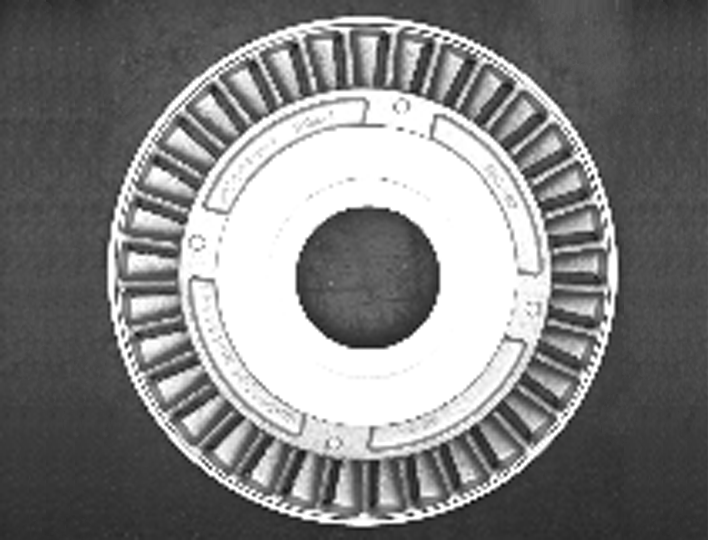

OCR anti-mixing for automotive motor stator
There are many kinds of products in the automotive motor stator production line,and it is necessary to identify the characters and features on the products to determine the product model. When it is found that different models are mixed, an alarm signal is issued.

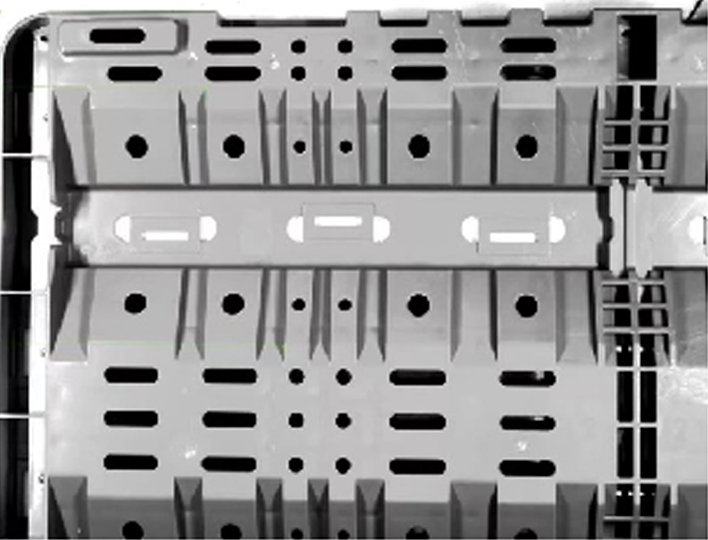

Pallet dimension measurement
The size of the tray product is 1m*1m, and it is necessary to measure the external size of the product and the size of the internal groove, and the accuracy is required to be ±1mm.Use a 4-camera layout to cover the entire product.
Product multi-hole positioning screws & positioning fit
By improving the imaging to find the center of the contour and adding compensation, the camera can realize the screw of multiple holes at one time. Then use the checker board calibration board calibration and reading method, the fixed position of the product cover is sucked and fitted to the product.
Q1. Can I have a sample order for area scan camera?
A: Yes, sample orders and any orders are acceptable.
Q2. What is the lead time?
A: 3-5 days for sample/small(<50pcs) orders, 1-2 weeks for bulk buying (>50pcs).
Q3. What's your MOQ for the area scan camera?
A: The MOQ is 1pcs.
Q4. What's your shipment term and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days by air. Shipping by sea is also acceptable.
Q5. How to place an order for area scan camera?
A: 1. Confirm camera resolution, sensor size, interface;
2. Confirm camera lens resolution, sensor size, focal length, logo, interface;
3. Confirm the order and quote;
4. Pay orders and arrange production;
5. Check the product and arrange delivery.
Q6. Do you support private labels?
A: Yes, we do.
Q7: How long is your product warranty?
A: We offer 2-5 years warranty for our products.
Q8: How do you deal with the faulty products?
A: 1, Our products are produced in strict quality control system with a 0.2% defective rate.
2, If non-artificial damage, dysfunction or errors happen during the warranty period, customers can go for repair, replacement or partial/full refund.
MV-1000RCM-GE（Specifications & Drawings）.pdf
